Floor heating

Operating voltage: 230 V/AC
Max. power consumption: 100 watts/m²
Max. operating temperature: 80°C
Min. operating temperature: -10°C
Width of carpet: 50 cm
IP protection: IPX7
Cable diameter: 17 mm flat cable
Loop distance: 5.0 cm
Connecting cable length: 4.5 m
Protection equipment: FI circuit breaker 30mA

More information:

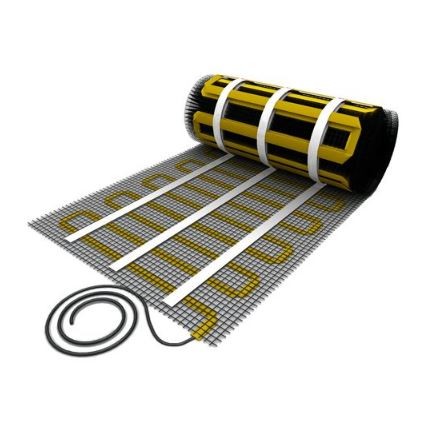

Electric heating mat

The underfloor heating mat is popular because of its polypropylene sleeve, which distributes it more evenly away the heat. The flat geometry of the 17 mm wide cable allows it to heat up five times faster than conventional heating cables. In addition, the loop distance of only 5 cm ensures continuous and fast heating.
The multi-layer flat heating cable is attached to a fiberglass mesh, which makes installation easier and promotes stabilization.
The heating mat is protected by a golden polyimide jacket. It has very high thermal conductivity, resistance to chemicals and fire resistance.
Features

Full cover with aluminum earth protector
Constant surface temperature
No electromagnetic radiation
Flexible, robust, long life
Homogeneous energy distribution
Cost and energy saving
Low investment costs
PTFE (Teflon) insulation
Chemical resistant fast warm-up time
PVC protective jacket
Self-adhesive
Maintenance free

Electric underfloor heating with flat heating cable self-adhesive fiberglass mesh heating mat 100 watts/m² 9.0 m²
