Floor heating

Operating voltage: 230V
Power: 150 watts / m²< br />Max. operating temperature: 80 ° C
Operating temperature: -10 ° C
Width of carpet: 50 cm
Protection class: IP67
Cable diameter: 4.2 mm
Cable distance: 8 cm
Connecting cable length: 3.90 m
Protection: FI circuit breaker 30mA

More information:

Electric floor heating

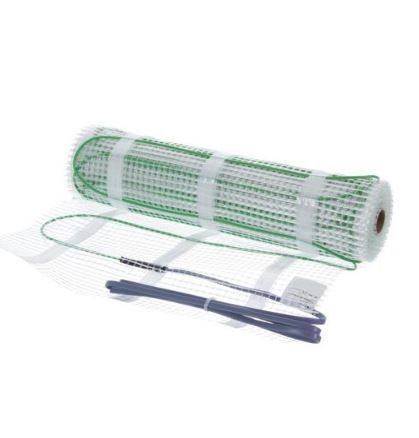

Underfloor heating mats can be installed directly on tiles, stone, marble, carpet, etc. it is necessary to install under it, either for new buildings,old houses or environmentally friendly apartments, The underfloor heating mat delivers heat through the surface of the floor, thus providing a pleasant warm indoor climate. The cable consists of a shielded two-conductor heating cable, which is laid on a sleeping mat with a self-adhesive backing. The electrical connection passes through a so-called "cold end", which connects the heating cable using reliable, tested technology.
In contrast to a single-conductor cable, the two-wire system supplies power to the heating mat. it only runs from one end. This avoids rerouting the second connection cable. The excellent quality and functionality of the carpets are ensured by extra thin and shielded cables.
Features

Electric underfloor heating under cold cover 150W/m² 14.0 m²
