Floor heating

Operating voltage: 230 V/AC
Power: 160 watts/m²
Max. Operating temperature: 80°C
Operating temperature: -10°C
Carpet width: 50 cm
Protection class: IP67
Cable diameter: 3 mm
Cable distance: 5.5 cm
Connecting cable length: 3.90 m
Protection: FI circuit breaker 30mA

More information:

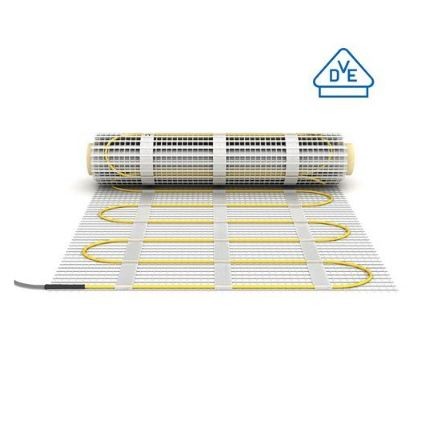

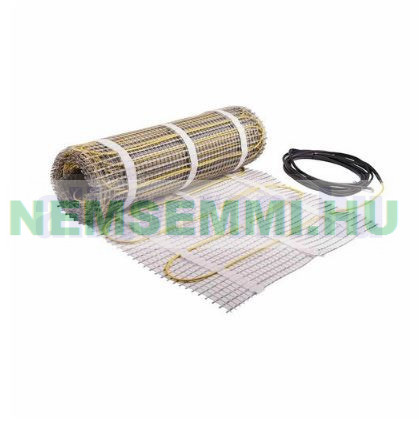

Electric heating mat

The golden heating mat for floor heating is designed to be installed directly under tiles,stone, marble, carpet, even new for buildings, old houses or environmentally friendly apartments.
The underfloor heating mat delivers heat to the surface of the floor through, thus a pleasant warm indoor climate is achieved.
The floor heating cable consists of a shielded two-conductor heating cable,which is attached to a sleeping mat with a self-adhesive backing bed The electrical connection passes through a so-called "cold end", which connects the heating cable using reliable, tested technology.

Unlike the single-wire cable, the power supply of the two-wire systemruns from only one end of the heating mat. This avoids rerouting the second connection cable. The excellent quality and functionality of the mats are ensured by extra thin and shielded cables.

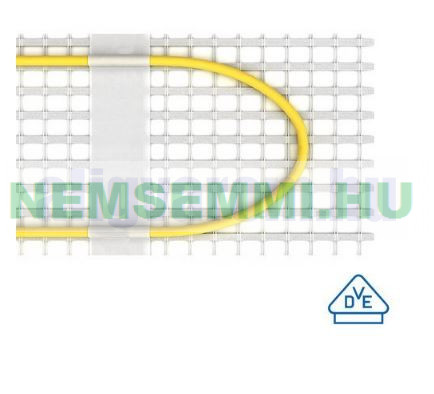

The cables on the sleeping mat are fixed at an even distance.

Features

Electric floor heating Heating mat with 3 mm diameter heating cable 160 W/m² 12.0 m²

Floor heating

Electric heating mat
