Floor heating

Operating voltage: 230 V/AC
Power: 160 watts/m²
Max. Operating temperature: 80°C
Operating temperature: -10°C
Carpet width: 50 cm
Protection class: IP67
Cable diameter: 3 mm
Cable distance: 5.5 cm
Connecting cable length: 3.90 m
Protection: FI circuit breaker 30mA

More information:

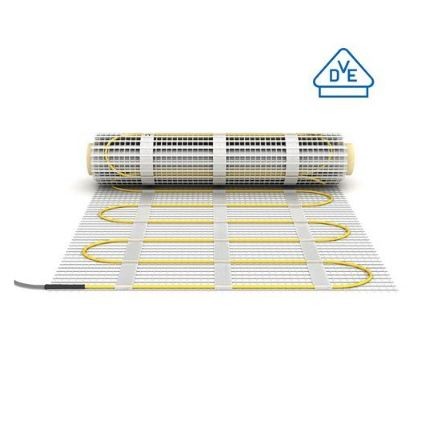

Electric heating mat

The golden heating mat for floor heating is designed to be installed directly under tiles,stone, marble, carpet, even new for buildings, old houses or environmentally friendly apartments. The underfloor heating mat delivers heat through the surface of the floor, thus achieving a pleasant warm indoor climate.
The floor heating cable consists of a shielded two-conductor heating cable,which is attached to a sleeping mat with a self-adhesive backing bed
The electrical connection passes through a so-called "cold end", which connects the heating cable using reliable, tested technology.
< span style="color: #000000;">In contrast to the single-wire cable, the two-wire systempower supply to the heating mat is only one runs from the end. This avoids rerouting the second connection cable. The excellent quality and functionality of the mats are ensured by extra thin and shielded cables.
The cables on the sleeping mat are fixed at an even distance.

Features

Electric floor heating Heating mat with 3 mm diameter heating cable 160 W/m² 10.0 m²
