Electric thin floor heating mat

Operating voltage: 230 V/AC
Max. energy consumption: 150 watts/m²
Max. operating temperature: 80°C
Min. operating temperature: -10°C
Carpet width: 50 cm
IP protection: IPX7
Cable diameter: 1.4 mm
Connecting cable length: 3.8 m
Protection device: FI circuit breaker 30mA

Further information:

Floor heating mat

Electric thin floor heating mat under laminate or parquet

The extremely thin two-conductor underfloor heating can be used as comfort heating with an already installed heating system , as well astogether with a direct heating system.
The Aluminum-coated textile provides even heat distribution, so we recommend it for laminate floors and parquet. The heating mat can be used in living rooms, basement rooms, event rooms, caravans, campers, boats or yachts. also suitable for rooms.

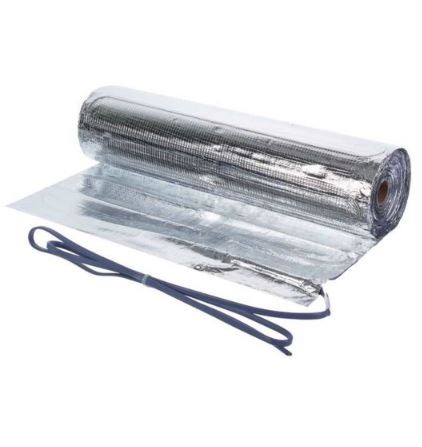

The heating mat is made of a shielded two-conductor heating cable stands, which is embedded on aluminum coated textile.
The electrical connection passes through a so-called "cold end", which connects the heating cable using reliable, tested technology.
Unlike the single-conductor cable, the the power supply of the two-wire system runs from one end of the heating mat only. This avoids the need to return the second connection cable.
Features

ideal for rooms with low construction height
cost-effective and energy-saving
long life
easy to install
