Floor heating

Operating voltage: 230 V / AC
Watt: 200 W / m²
Carpet width: 0.5 m
Carpet thickness: 3 mm
Heating cable diameter: 1.8 mm
Internal / External insulation: Advanced Fluoropolymer (ECTFE)
Min. during installation: 5 ° C
PTC thermistor connecting cable length: 3m

More information:

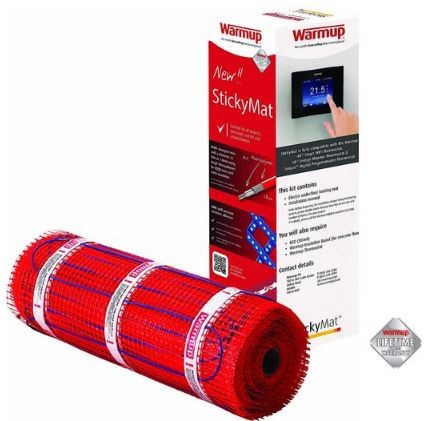

Self-adhesive heating mat

The self-adhesive heating system is ideal for new buildings or renovations. The self-adhesive floor heating system is ideal,where 50 cm wide carpets can be quickly removed in parallel can be rolled on the floor. If vinyl, carpet, wood, tile or any other you want to use a floor covering compatible with underfloor heating, the system can be embedded (and in some cases, e.g. carpet) into a self-levelling mixture to
straight and should be a horizontal floor.
The 150W / m² version can provide primary heating well in isolated areas. Insulating boards retain heat in the room for a longer time. More importantly, they prevent downward heat loss. The 150W / m² floor heating can be laid on both wooden and concrete substrates.
Features

Two fluoropolymer coated heating cables, only 1.8 mm in diameter.
Self-adhesive for quick and safe installation.
Confirmed quality (BEAB certificate)

Extra thin self-adhesive heating mat for electric floor heating 150W/m² 9.0 m²
