Floor heating

Operating voltage: 230 V / AC
Max. energy consumption: 100 Watt / m²
Max. operating temperature: 80 ° C
Min. operating temperature: -10 ° C
Heating mat width: 50 cm
Heating cable width: 17 mm flat cable
Loop distance: approx. 5-6 cm
connecting cable length: 4.5 m
IP protection class: IPX7
Safety measure: FI breaker 30mA

More information:

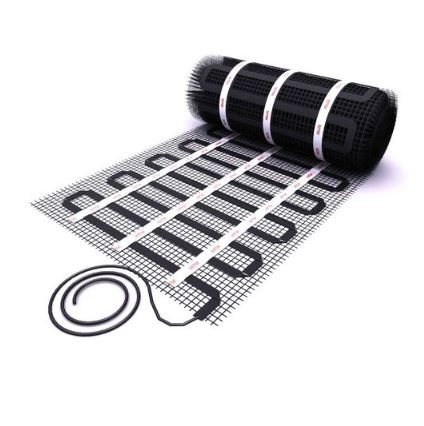

Electric heating mat

The black heating mat is characterized by its unique product technology,which has a round heating cable provides better heat distribution than other heating systems #000000;">Thanks to the flat and wide heating cable, the
heat emitting surface is five times larger. In addition, the small loop spacing of approx. 5-6 cm ensures that the floor covering heats up evenly and quickly . These basic features make this heating system particularly efficient.
The multi-layer flat heating cable is attached to a fiber optic network, which makes installation easier and provides stabilization.
The heating mat can be used indoors and can also be used outdoors. Suitable for private use, but also for heating greenhouses, sports fields or industrial halls.
Features:

Electric underfloor heating heating mat with low installation height 100 watts/m² 1.5 m²

Floor heating

Electric heating mat
