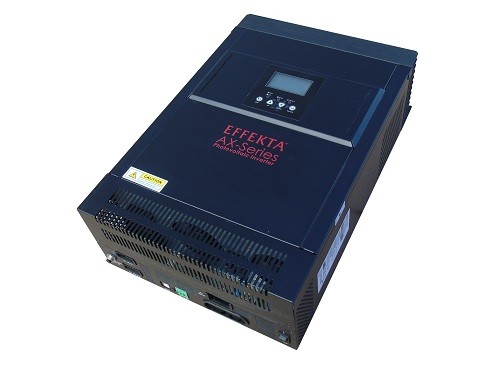

Island-powered smart inverter 3000W 24V automatic selection between battery and mains power supply

Hybrid Interter

Size: 355x272x128 mm
Weight: 8 kg
Protection class: IP20

Power
Maximum power: 3000W
Rated power: 2400W

PV input (DC)
Maximum PV output : 600W
MPP voltage range at full load: 30-66 VDC
Max. open circuit voltage: 75VDC
Maximum PV current: 25A

AC input
AC rated voltage: 230 VAC
AC network frequency range: 50/60 Hz
Selectable voltage range : 170-280 VAC

AC output
AC rated voltage: 230 VAC
Max efficiency: 93%
Switching time between battery and mains: max. 20 ms
Overload capability: 110-150% for 10 seconds, >150% for 5 seconds
Pure sine wave inverter.

Batteries and AC charger
DC rated voltage: 24VDC
Charging voltage: 27 VDC
Overcharge protection: 31 VDC< br />Maximum charging current: 30A

Smart inverter with isolated power

Automatic grid switching if there is no solar energy and the battery is flat.
The inverter is grid-independent .

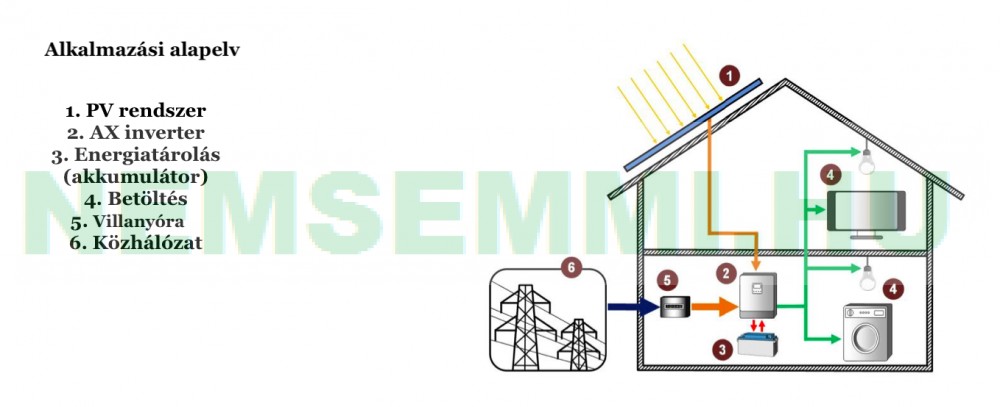

The inverter gets its energy from three energy-generating sources:
- solar panel,
- batteries
- mains power sources.
The power source can be a generator or the public electricity network.

If the energy supply from the solar panel system is insufficient, the inverter will automatically supplement the missing energy.
At night or in the event of a complete failure of the PV modules and the discharge of the batteries, the inverter automatically switches to the alternating current source.

The electricity is NOT fed into the network, but is stored and consumed by the user.

Main features:

-Configurable via LCD display or PC software.

-Automatic restart after returning to the network.

-Overload, overheating, short circuit protection.

-Can be used for an isolated solar system.
