Automatic power control solar collector solar station 2 sides Tiemme Italian + SR208 control included in the package

Automatic output control solar collector solar station

Contents of the pump station:
Pump: Wilo ST 15/6 Eco
Flow rate: 1-10 liters/minute
Connections 3/4"
Maximum pressure: 10 bar
Maximum temperature: 160°C
EPDM seals,
EPP external insulating box
3-speed Wilo ST 15/6 Eco solar pump
flow meter and regulator
expansion tank connection point,
6 bar safety valve
heat insulating cover
2 thermometers
1 pressure gauge
air separator

+

SR208 control
Power supply: 200V – 240V AC
Consumption: <3 w="" br="">Accuracy of temperature sensors ± 2 C
Collector temperature measuring range (PT1000): -10-220°C
Tank temperature measuring range (NTC10K,< /span>
B=3950):
0-110°C
Power of usable pumps: < 600W
Applicable electric heating pad: < 600 W
Inputs: 1 × PT100 sensor (< 500°C) to the collector.
(Silicone cables < 280°C)
2 × NTC10K, B3950 sensors (<135°C)
for container.(PVC cables <105°C)
Outputs: 1 relay for circulation pump.
1 relay for electric heating pad.
Optimum ambient temperature: -10 - 50°C
Environmental protection: IP40

Control content:
1 programmable wall control unit with display< br />2 storage temperature sensors
1 collector temperature sensor< br />1 mounting unit package
1 installation manual in Hungarian

THE PICTURES ARE ILLUSTRATIONS!

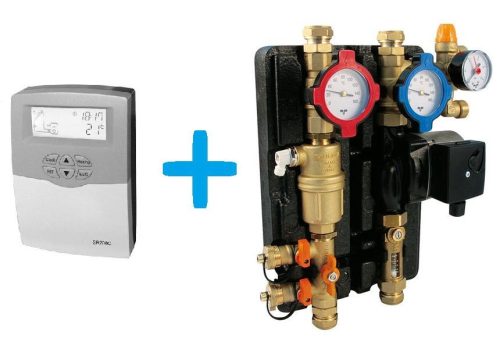

Tiemme pump station + SR208 control package

Attention! The 2-core cable of the pump goes to low-voltage electronics! Under no circumstances should you supply it with 230V, because it can lead to the electronics burning, and also voids the warranty!
The correct connection: brown cable to PWM, blue cable to GND

Tiemme Two-sided solar station with automatic power control, including the fittings for the forward and return lines of the solar circuit.
Flow rate: 1.0-10.0 l/min
Max. pressure: 10 bar
Connections: 3/4"
The solar pump station is a prefabricated compact unit that contains most of the necessary equipment and fittings for the operation of solar collector systems the installation of a solar circuit becomes significantly easier and
professional operation is ensured you can save.

+

SR208 Controller
Perfect for controlling a normal solar collector system, it monitors the collector temperature and tank in two places, starts the pump if necessary.
It can also switch on electric auxiliary heating.
Control based on temperature difference
Electric auxiliary heating based on tank temperature
Usable hot water circulation in pipe
Freeze protection function
Tank overheating protection function
The product contains 3 sensors

THE PICTURES ARE ILLUSTRATIONS!
