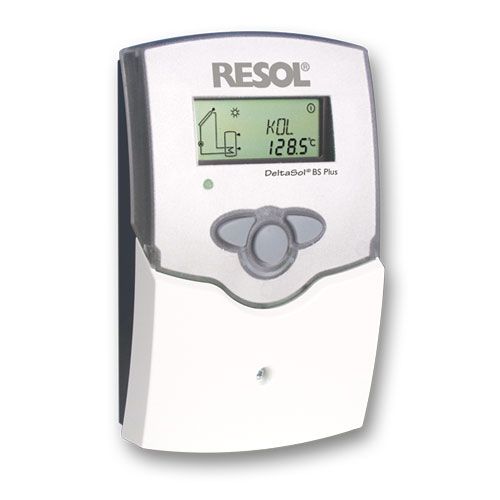

Solar collector control RESOL BS/4 HE temperature difference regulator Solar collector control with 4 PT1000 sensors PWM control

RESOL solar collector control

Housing: Plastic, PC-ABS and PMMA
Protection: IP 20 / DIN 40050
Ambient temperature: 0 ... 40 °C
Dimensions: 172 x 110 x 46 mm
Installation: Wall mounting, can be built into a switch cabinet
Display: System monitor for system visualization, 16-segment display, 7-segment display, 8 symbols for system status and control lamp
Operation: Three push buttons on the front of the cover
Functions: Temperature difference control can be activated as an option with
functions. Function control based on the BAW direction, operating hour counter for the collector circuit pump, vacuum collector function, speed control,
thermostat function and heat amount averaging
Inputs: 4, for Pt1000 temperature sensor
Outputs: 2 semiconductor relays
Bus: RESOL VBus
Power supply: 220 ... 240V~
Switching power: 4 (2) The 220 ... 240V~

Solar controller

Solar collector control RESOL CS PlusPWM control.
The control is pre-programmed, for the person tailoring is not complicated.
If you still want professional equipment and programming, when purchasing the product we can recommend a contractor who Bp. It also goes to homes within a 100 km radius.

The following operating modes can be seton:

Standard solar collector system
< span style="color: #000000;">With 1 tank, 1 pump and 3 sensors.

Solar system
with 2 tanks 2 tanks, 4 sensors and 2 pumps

Solar collector system with reheating
< span style="color: #000000;">With 1 storage, 3 heat sensors and storage reheating with boiler.

Solar system with storage layer heating
1 tank, 3 sensors, 1 pump and 3-way valve for layer heating of the tank.

Solar collector TWO storage system with valve control
2 containers, 3 sensors, 1 pump and 1 pc. 3-way valve.

Solar system 2 storage system with pump control< br />2 tanks, 3 sensors and 2 pumps.

Solar system with East-West collector field
1 tank, 3 sensors 2 pumps

Solar collector system, storage reheating with solid fuel boiler< br />1 tank, 4 sensors, 1 pump and 1 pump for reheating

Solar collector system with heating support
< span style="color: #000000;">1 container, 4 sensors, 1 pump and 1 pc. 3-way valve heating return branch for preheating
