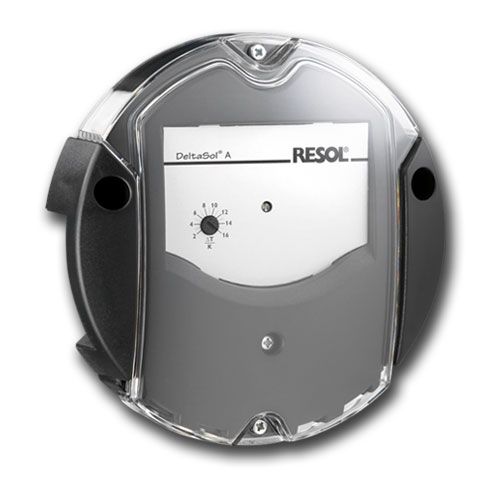

Solar collector control DELTASOL AX temperature difference regulator. Heating, ventilation or ventilation controller 2 PT1000 sensors

RESOL solar collector control

Coating: Plastic, PC-ABS
Protection: IP 20, with seal IP 22 (DIN 40050)
Ambient temperature: 0 ... 40 °C
Dimensions: Ø 130 mm, depth 45 mm
Installation: Wall mounting
Display: 1 function control lamp
Switch-on difference: ∆T 2 ... 16 K
Hysteresis: 1.6 K
Regulation range : -20 ... +150 °C
Additional functions: Frost protection, manual mode, maximum or minimum
temperature limitation
Input: 2, Pt1000 for sensor (the sensor is included in the box)
Output: 1 standard relay (switch)
Switching power: max. 4 A
Power voltage: 220 ... 240 V~

RESOL solar collector control

Robust and deliberately simple design makes the DeltaSol AX controller a
favorably priced and universally applicable makes it a device in solar collector,
heating and ventilation systems. The control is pre-programmed, personalization is not complicated.
If you want professional equipment and programming, if you buy the product we can recommend a contractor who Bp. It also goes to your home within a 100 km radius.
The wide control range, the adjustable temperature difference and the maximum and minimum temperature limits make it possible in almost all cases its application.
As an option, the cover of the device can be equipped with a seal, which provides protection against splashing water (IP22) to set the temperature limitation (adjustable from 20 to 90?°C). frost protection, maximum and minimum temperature limitation can be switched on and off separately.

The system is controlled by a standard changeover contact relay, to which motors and electric valves can be connected.
