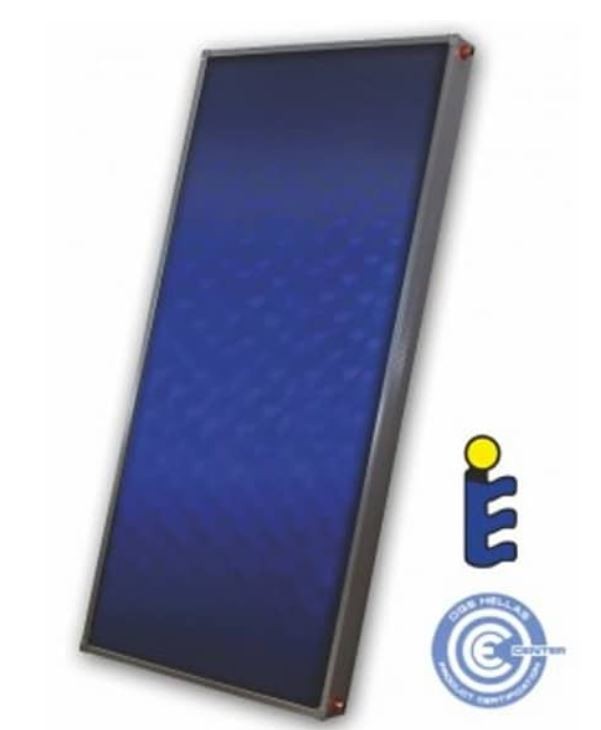

Extra large Sunsystem solar collector 2.4 m2 blue absorber copper tube flat collector with extra insulation, 9.5 cm thick, black frame, 9 year warranty, good price - value!

Plane collector

Solar collector size WxD: 1230x1930 mm
Collector thickness 9.5 mm
Total collector surface: 2.40 m2
Aperture surface: 2.23 m2
Glass thickness: 3.6 mm
Glass thickness: microprism low-metal, heat-treated safety glass
Pipe: copper with harp system, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connecting pipe
Liquid capacity: 1.7 liters
Maximum pressure : 15 bar
Maximum operating pressure: 10 bar
Weight : 41 kg
Absorber material: selective black chrome
Absorbing capacity : 95 %
Emissivity factor: 11 %
Insulation material: glass wool
Insulation thickness: 50 mm
No-load temperature : 189 °C
Optical efficiency, η0: 0.66
Loss coefficient a1 (w/m³k2): 3.8
Loss coefficient a2 (w/m³k2): 0.023
Recommended volume flow: 35-78 liters/hour
Peak power per square meter 761 Wp/m2

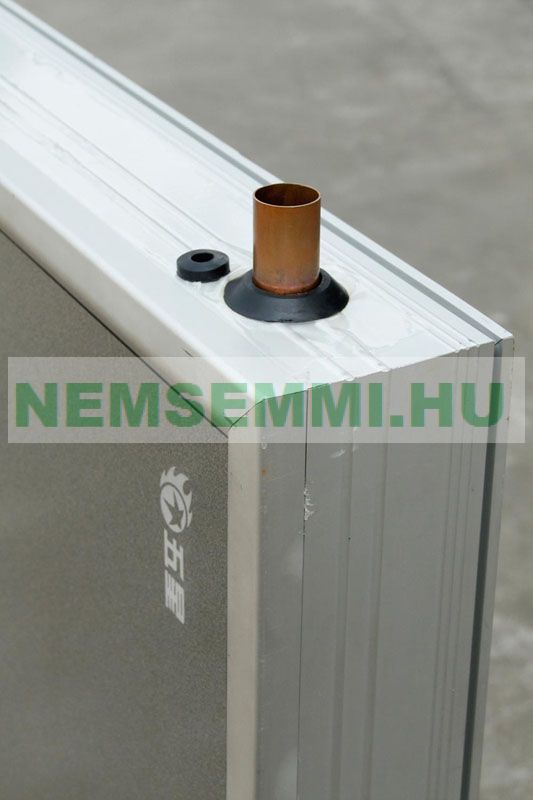

Harp system COPPER collector pipe design, with 22 mm connection sockets.
CE certificate

Packaging size of the solar collector:
205X135X12 cm 43 kgMore information:

Plane collector

Extra large flat solar collector with a 9-year warranty!
Don't forget to choose a support frame!
With copper collection tube, heat-treated safety microprism glass, aluminum housing, thick with insulation for solar energy utilization.

The construction of the basic planar collector includes:

Absorber sheet: This sheet is black or dark in color and made of a material that effectively absorbs the solar energy. The absorber sheet collects the thermal energy radiated by the sun's rays.

Thermal insulation: Flat plate collectors usually have a thermally insulated back panel to minimize heat loss and increase efficiency. Thermal insulation prevents heat from radiating between the back panel and the absorber.

Glass cover: The top of the flat collectors is covered with a layer of glass, which allows solar energy to enter the into the collector, while protecting the absorbers and the entire system from environmental influences.

Reliability, operational safety and longevity are guaranteed by high-quality, corrosion-resistant materials: among others, safety microprism solar glass with a low metal content (it has excellent heat resistance and a high degree of chemical resistance), and copper.

The flat collector support frame accessory is not included in the price, it can also be ordered for sloping and flat roofs, see our products.
