Compact Stratos 120 liter rotating system vacuum tube solar collector with high efficiency self-covering system

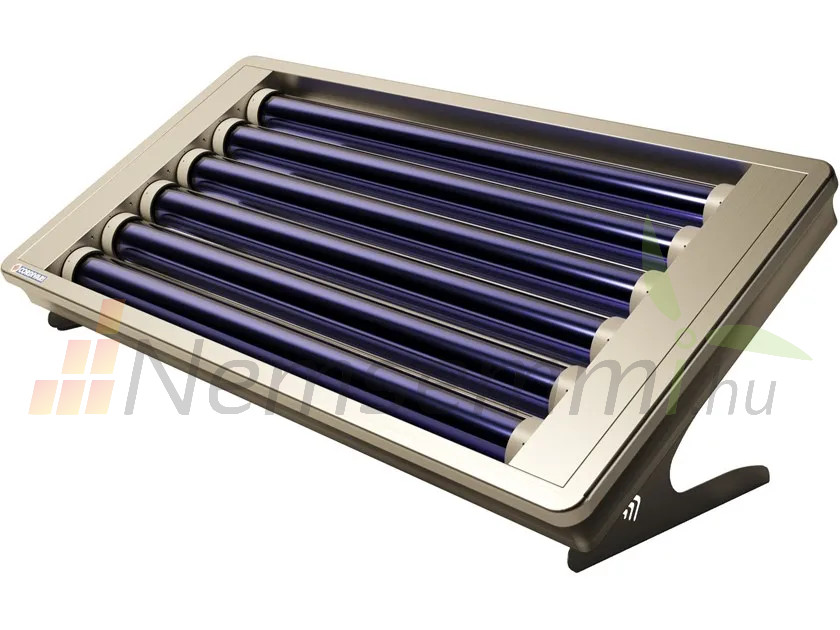

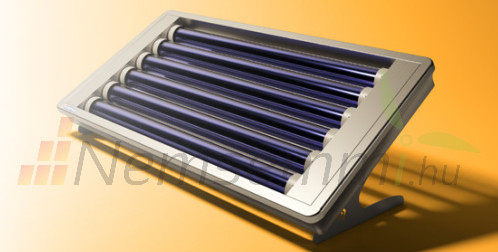

Stratos 4S ROTO vacuum tube solar collector

Gross collector surface: 1.77 m²
Size: 2160x822 mm (more detailed information in the picture below)
HMV connection: 1/2"
Total weight (in operation): 122 kg
Weight/m²: 69 kg
Max. inlet pressure: 4 bar
Max. pressure: 7.5 bar
Max. temperature: 100°C
Min. temperature: -20°C
Inclination angle: 10° - 70°
Frame structure material: marine grade anodized aluminum (15 um/micron)
Support and fixing material: galvanized steel
Primary collector circuit material: AISI 304
HMV heat exchanger material: stainless steel AISI 316L - drinking water

Mounts belonging to the collector:

• 6 bar safety valve

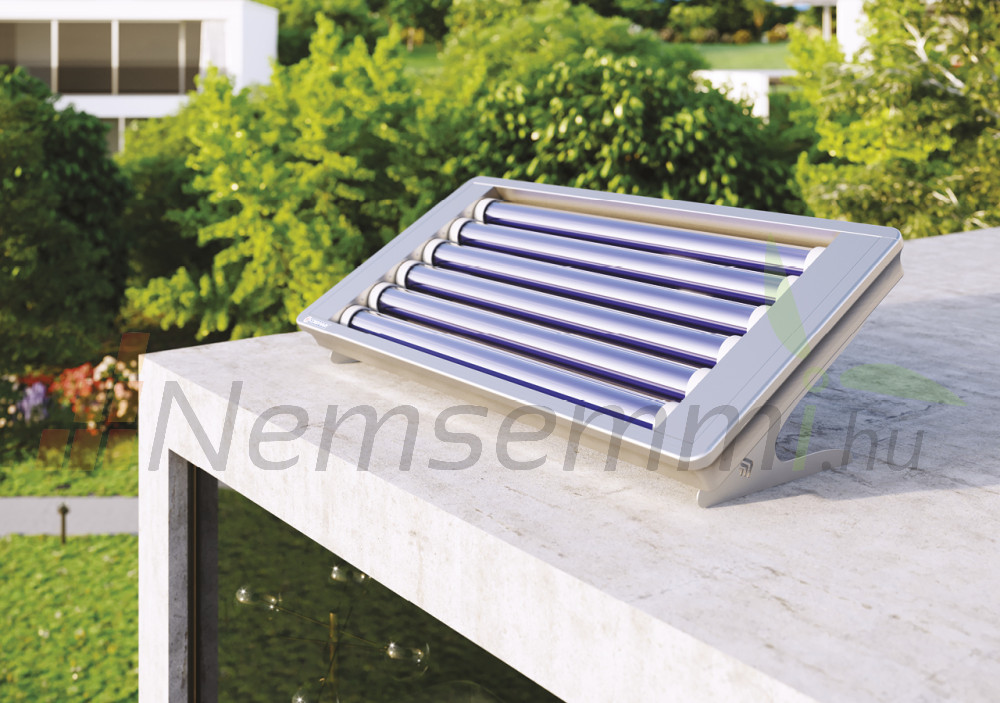

• fixing kit for flat and pitched roofs
• non-toxic heat transfer fluid
• automatic anti-stagnation system with high-performance circulation pump

Warranty: 5 years

DOWNLOAD DATA SHEET

Expected delivery time 6-8 weeks!

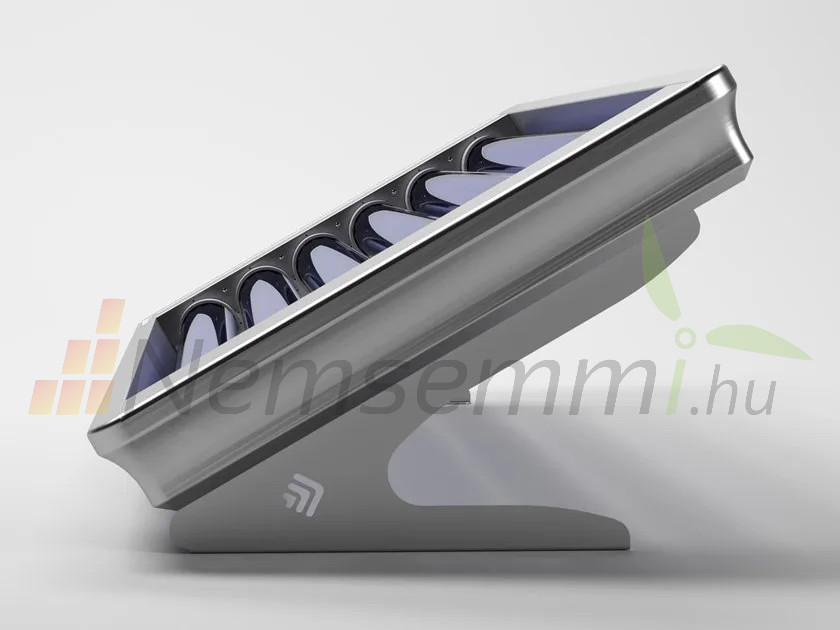

Rotating system compact solar collector

STRATOS® 4S ROTOSHIELD® is an innovative, high efficiency
compact solar collector system with integrated hot water storage.
It is equipped with a patented anti-jamming device and the patented rotating system results in maximum utilization.

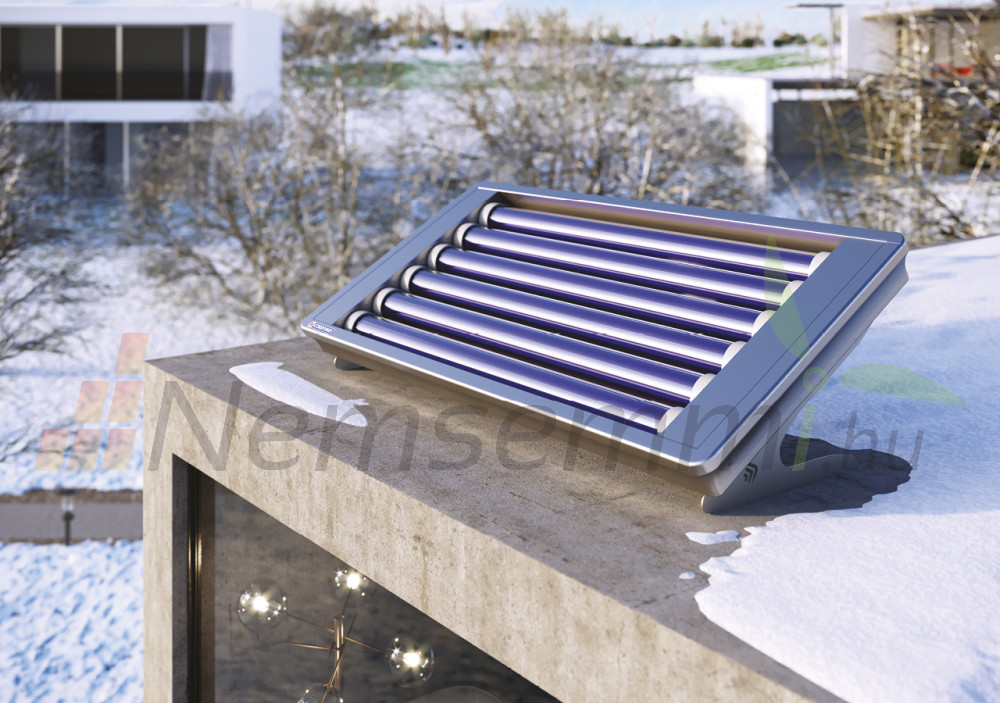

Its use is suitable in all climate zones, as it can withstand cold temperatures down to -20°C.
STRATOS® 4S ROTOSHIELD® is the lightest solar collector system on the market. Thanks to its reduced weight/square meter ratio, the STRATOS® 4S SYSTEM is the lightest vacuum tube solar collector set on the market. was developed during the period of greater solar radiation.
Rotation occurs naturally, without the use of an electrical device.

Before starting the system, fill the pipelines (which are already filled with glycol) with water. The lower tube is the motor tube, which is pre-filled with both antifreeze and water.
For the 120 liter monell, fill the first three UPPER tubes with water.
Installation and uploading must be done with the device covered!
Always read the user manual for correct installation!
