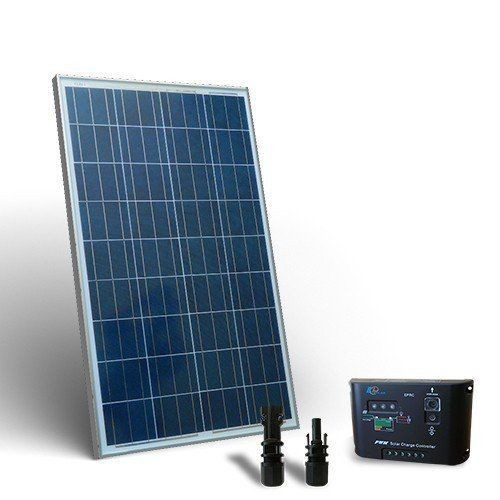

Solar panel set 100W

Size: (L x W x H) 1000x665x35 mm
Power: 100 Wp
Voltage at rated power: Vpmax: 18 V
No-load voltage: Voc 21.6 V
Power: 100 Wp Rated current: 5.55 A< /span>
Short circuit current: 6.11 A
Operating range: -40℃ - +85℃
By-Pass Diode 12 Amps
< span style="color: #000000;">Safety glass: 3.2 mm
Weight: 8.1 kg

Solar panel charging control technical data
Automatic voltage recognition between 12 and 24V
Maximum solar panel power: 10A 240W
Charging voltage: 13.7Volt / 27.6Volt
Deep discharge protection: 10.7Volt / 21.4Volt

Connectors: 2 USB with 5V output, 1A
Own consumption: 30mA
Operating temperature: -35° bis +60 °C
Dimensions 133x70x32mm
Weight 120g

Solar panel connector pair:

Type: MC4
Maximum voltage: 1000V
Maximum current: 25A
Touch protection class: Class 2.

More information:

100W solar panel kit

With solar panel, charge controller
Solar panel module 100W
< span style="color: #000000;">Charge controller: 10A

Package contents:

1 solar panel
1 charge controller
< span style="color: #000000;">1 pair of solar cable connectors

Camping solar panel set 12V 100W, charge controller 10A, connection also for caravans, motorhomes

Solar panel set 100W

100W solar panel kit
