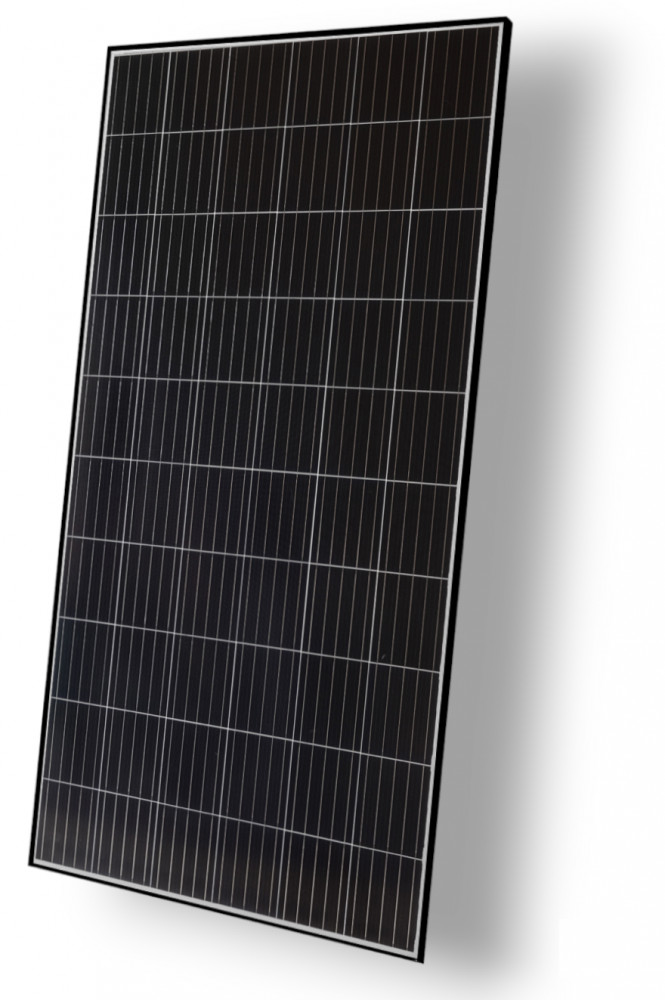

PERC cell 340W mono panel

Voltage (Voc): 40.85 V
Rated voltage (Vmp): 34.78 V
Short circuit current (Isc): 10.35 A
Rated current (Imp): 9.77 A
Power (Pmax): 340W
< span style="color: #000000;">Breakdown voltage: 1000V DC
Fuse max.: 16 A
Operating temperature: -40°C-+85°C
Size: 1665x1002x35 mm
Weight: 18.3 kg
Cell type: Mono square PERC cell 158.75x158.75 mm
Number of cells: 60
Glass: 3 .2 mm tempered glass
Frame: anodized aluminum colored (black-RAL 9005)
Junction box: IP67 with 3 bypass diodes
Output cable: E317230-C PV, connections PV4
Connection: 120 cm long MC4 compatible
Hail test: 25 mm (23mm/sec)

Minimum order quantity 5 pieces!
Larger quantity when ordering, look for our customer service.

More information:

340W X-MAX XL

Solar cell 340W monocrystalline solar cell made with new PERC technology. The structure of these solar cells is completely different from that of conventional solar cells.
PERC cells have a dielectric aluminum conductive layer applied to their back, which reflects some of the light that otherwise passes through the cell unused, and returns it to the power generator. These cells can also utilize the infrared wavelength of light.

Solar panel 41V 340W X-MAX XL monocrystalline 1665x1002x35 mm Mono PERC cells
