12V 24V 80A Charge controller for solar panel system, photovoltaic, automatic control, voltage recognition LCD display

• Details
• Info

Details

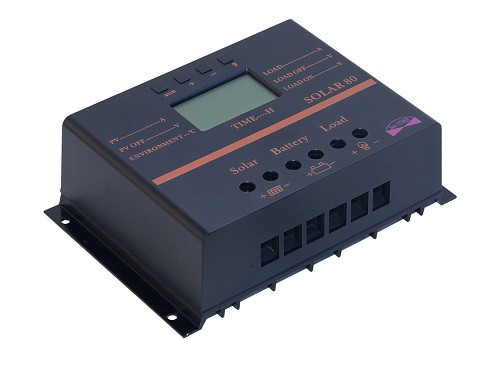

Solar charge controller

Dimensions: 128×188×61 mm
Output voltage: 12V / 24V automatic detection
Rated current: 80A
Operating temperature: -35 ° C ~ + 55 ° C
End of charge voltage: 13.8V / 27.6V
Deep discharge limit voltage: 10.7 V / 21.4 V
Own consumption: 30ma
USB 5V charging (for 500 mA) for mobile phones
PWM charging mode



More information:

Charge controller for solar panel with LCD display

Automatic voltage detection
Maximum current: 80A
< span style="color: #000000;">The charge controller is installed between the solar panel and the battery and/or consumer.
It monitors the battery voltage and protects against overcharging.
If both the battery and the consumer are connected to it, it protects the battery from deep discharge.
LCD display informs about voltage and current.

Info

Vonalkód:

00043274

EAN-kód:

5202104131331

MPN-kód:

NS001407

Weight:

500 g/pcs
