Zone valve

Material: brass

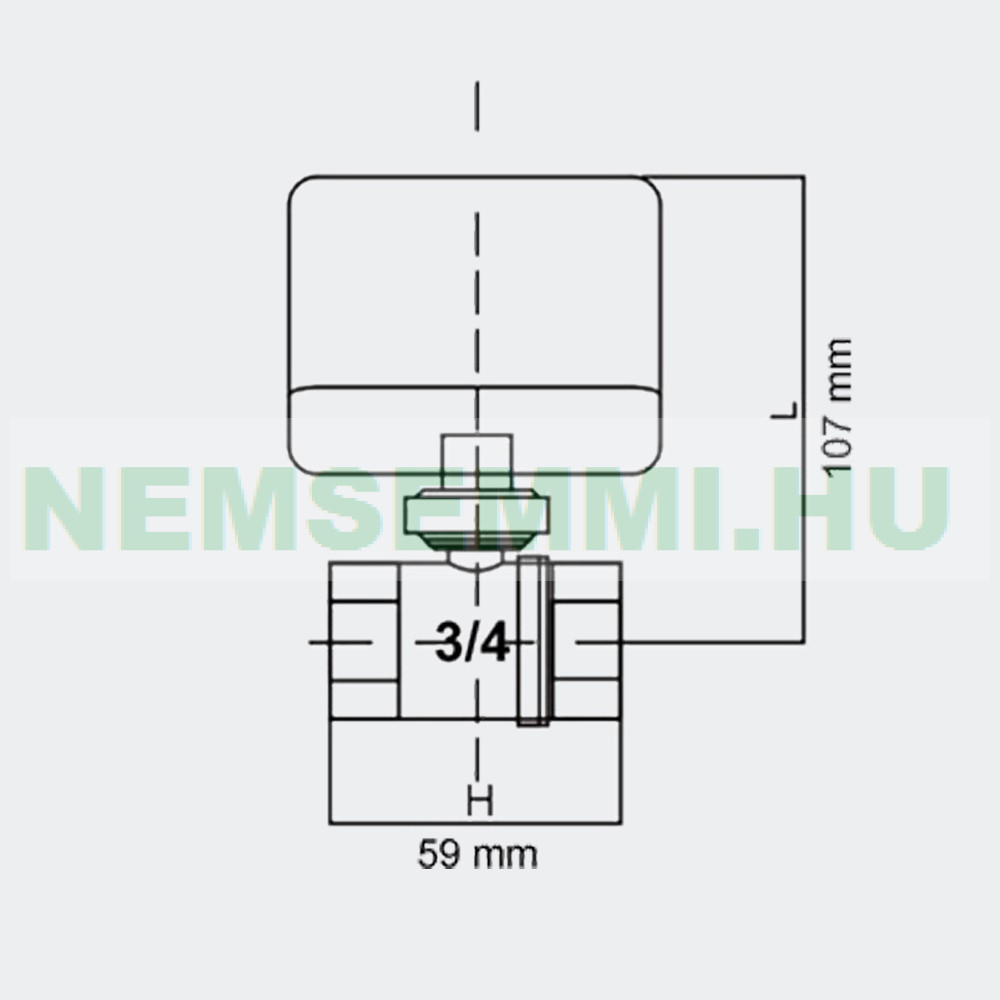

Size: 70 x 60 x 125 mm
Input voltage: 220VAC
Connector size: DN20
Setup time: 15 sec

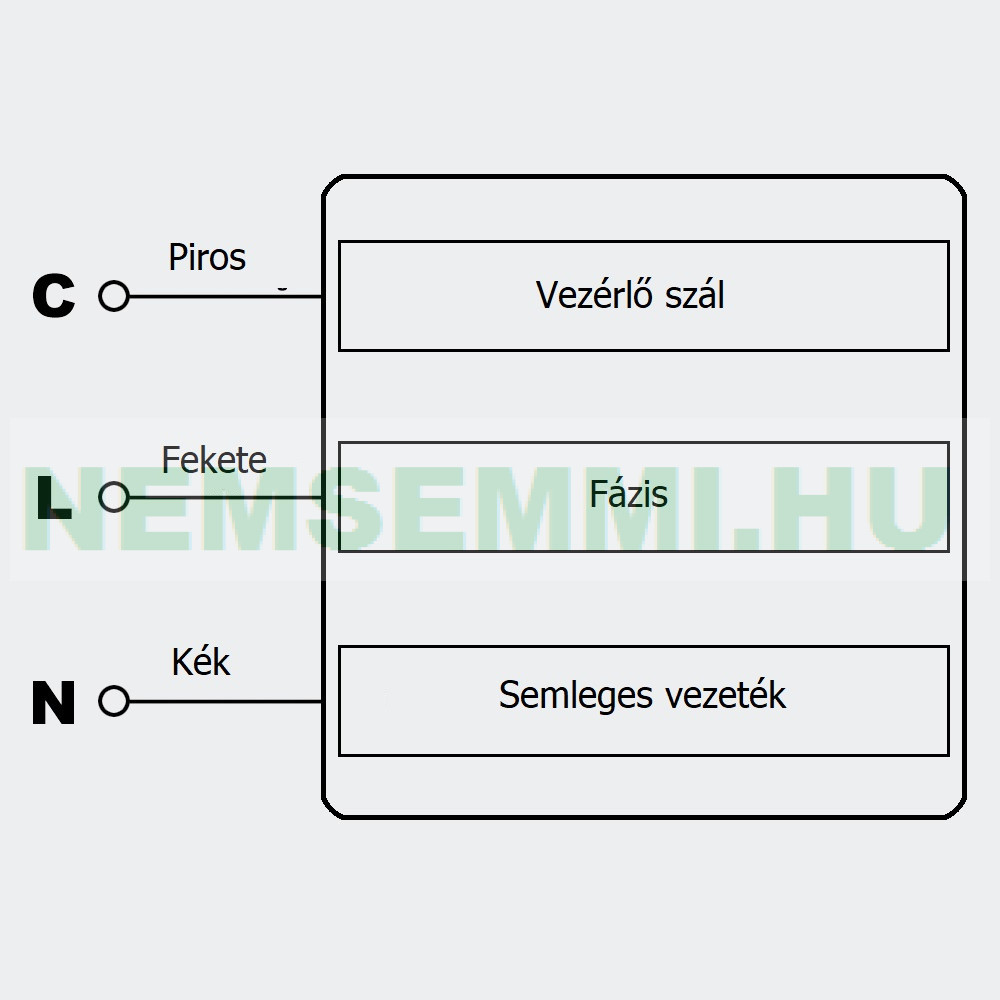

Connection:

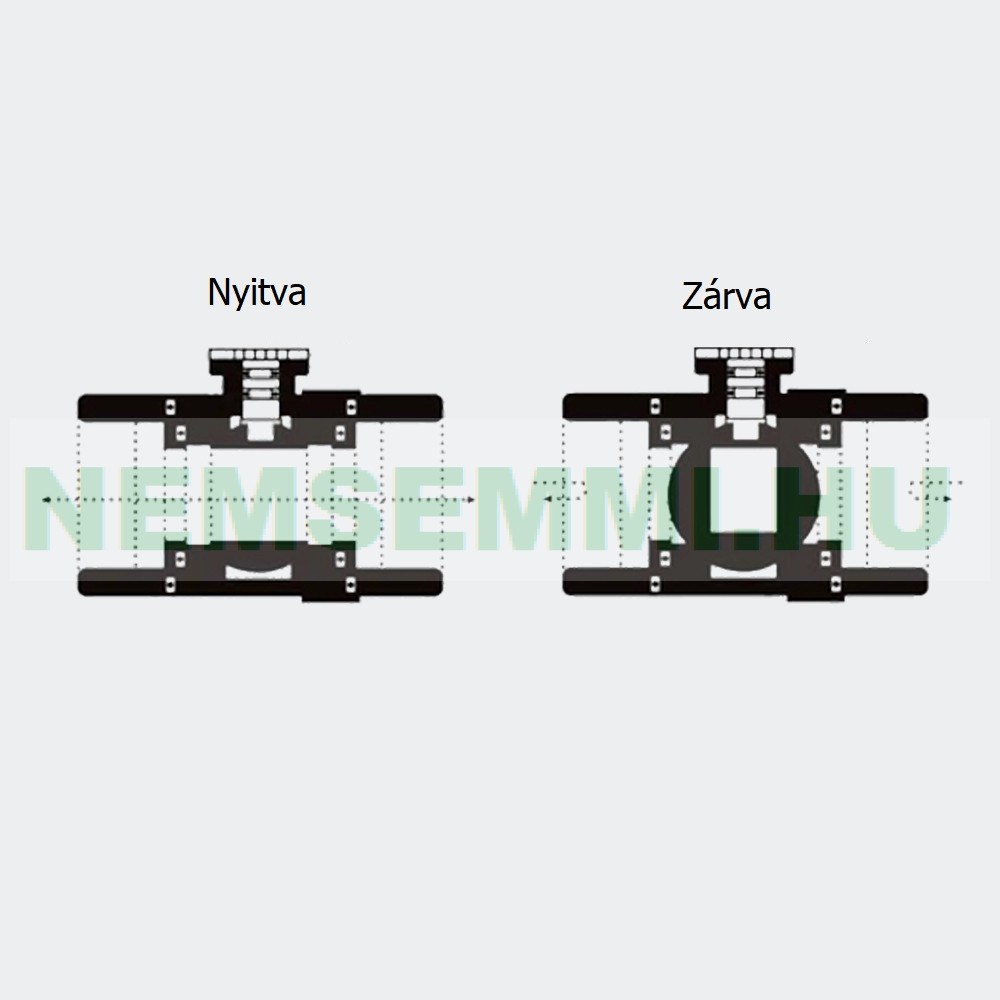

Ball valve open - no voltage
Power supply: black = phase (230 V), blue = 0 "color: #000000;">Ball valve closed - energized
Power supply: black = phase (230 V), blue = 0
Control wire: red = phase (230 V)

More information:

Motorized valve

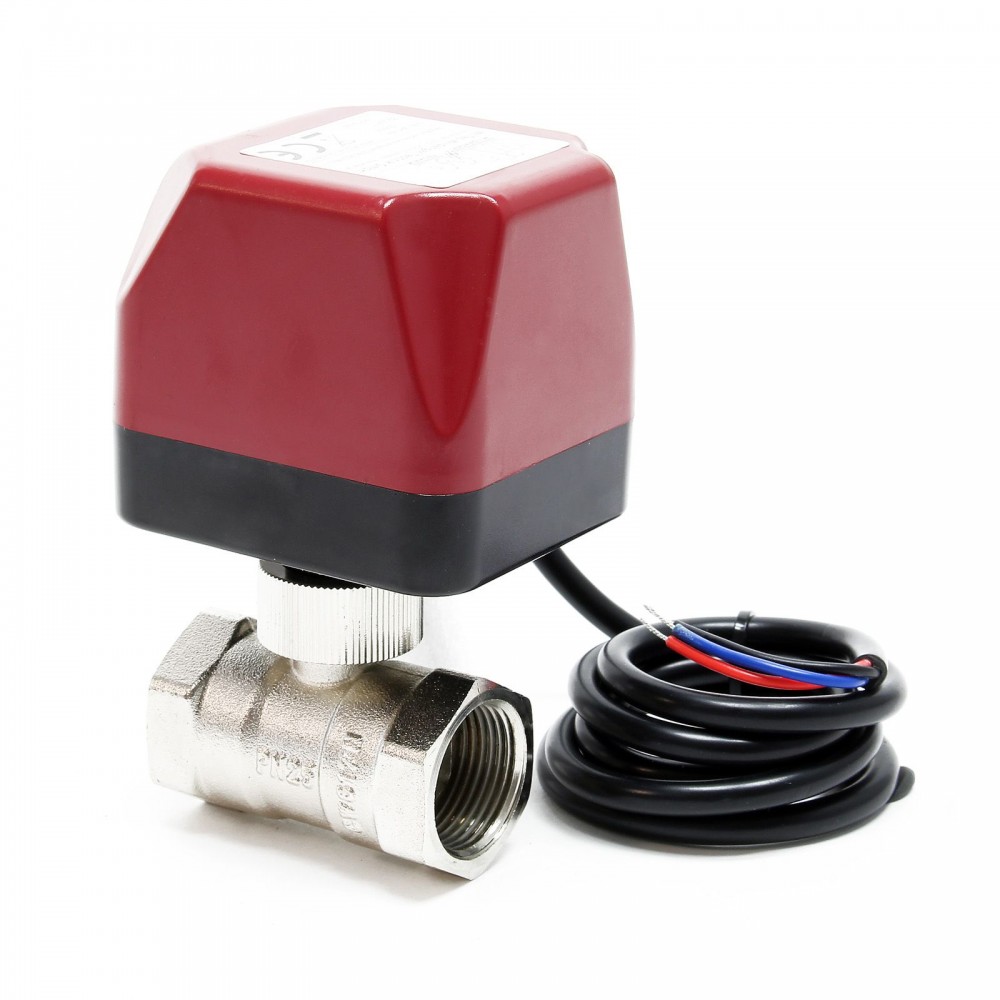

The motorized zone valve consists of a ball valve and a control motor.
The control motor operates the ball valve.
The valve body is forged made of brass.
In the event of a power failure, the valve can be opened or closed manually
with a spanner after removing the control unit.
The zone valve is equipped with limit contacts which
They can be in the "fully open" or "fully closed" end position.

Zone valves are used for drinking, heating and hot water systems
the "opening / close" together with control.

Two-way and three-way valves are widely used, such as:

- Room temperature control of heating systems.
- Control of heating and hot water systems .

Motorized valve 2-way valve zone valve 220VAC DN20 26.9 mm 3/4
