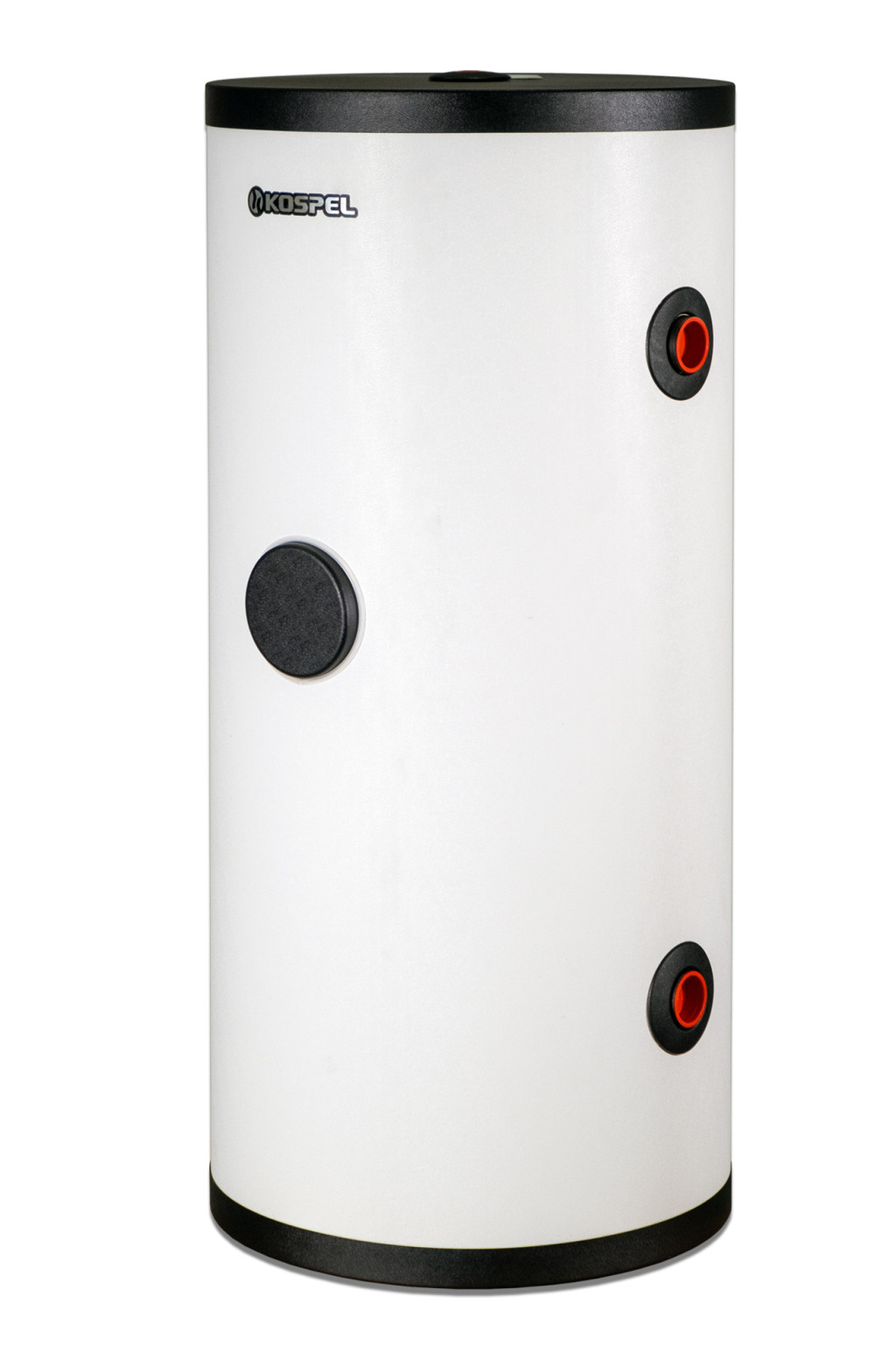

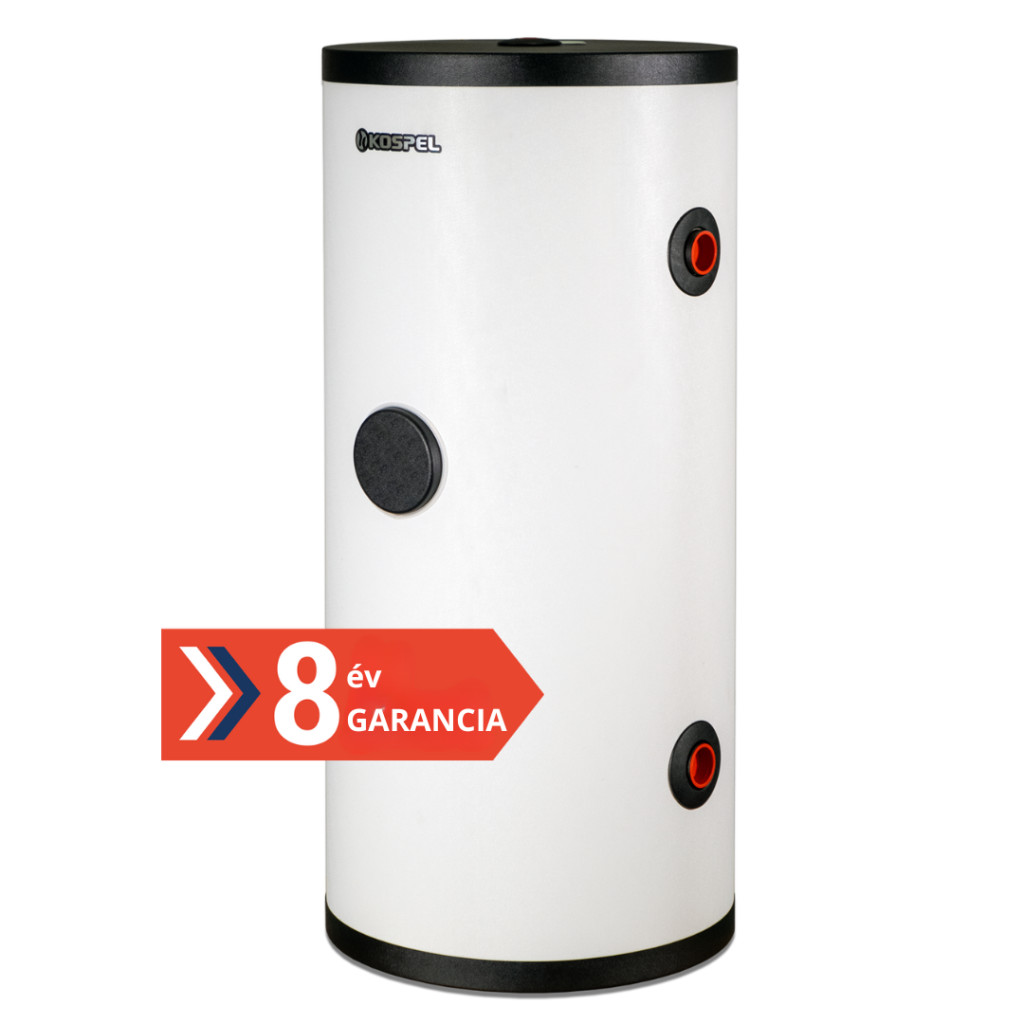

Heating-cooling buffer tank for 50-liter heat pumps - heat-insulated 50-liter tank without heat exchanger for cold and hot water storage. Sunsystem PSM 50

Heating Cooling Buffer Tank

Buffer storage volume: 50 liters
Diameter with insulation 44 cm
Height with insulation 52 cm
Storage operating pressure: 6 bar/95° C
Weight: 17 kg
Insulation: hard polyurethane
Thermal insulation: Hard polyurethane and outer steel cover powder coated - RAL 9003.
Water tank: Made of low carbon steel, S235JR.
Operating pressure: 6 bar.
Operating temperature range: 7 – 95°C.
Connections: between 4 and 10 pcs. 1 ½” connectors for installation. The connections are 180 degrees, and there are 1 extra wire each at the top and bottom.
Installation: The 30 and 50 liter models can be mounted on the wall, while the 80 and 100 liter models are suitable for both wall and floor. In addition, extra legs are available, which can be mounted on the bottom of the tank.

See the drawing for connectors.

Buffer storage for heat pump

It is used to store the hot or cold heat transfer medium generated by the heat pump. It can also be used as a buffer tank in heating systems. It functions both as a buffer tank and as a hydraulic balancer, preventing the heat pump from switching on and off frequently. It also provides a proportional hydraulic load between the various inter-circuit branches of the system.

Cooling / heating buffer storage heat pump made of high-quality sheet steel, powder-coated steel sheet with outer cover and hard PU insulation. With 180° connections, 2x1 internal thread, 6/4" connection. Buffer tank and hydro changer use wax, with 6 bar operating pressure.

Warranty: 2 years
