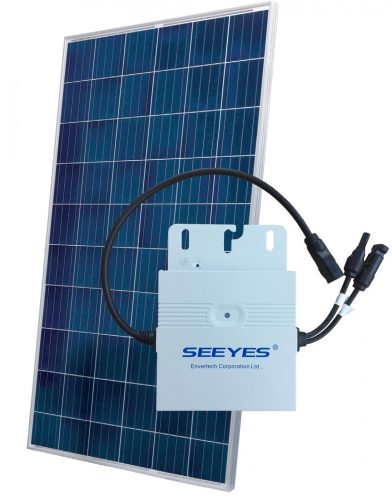

Plug-in solar panel system 230V 300W - 1 solar panel, inverter and connector set -

Plug-in inverter

The elements of the solar system in detail:

1 x 310W monocrystalline solar cell
Maximum power 310Wp
Rated voltage 33.7V
Idle voltage (Voc) 41.0V
Rated current 9.08A
Short circuit current (Isc) 9.65A
Maximum system voltage: 1000 V / DC
Ambient temperature: -40 ... + 85 ° C
Dimensions: 167.5 x 99 ,2 x 3.5 cm
Weight: 12.5 Kg
The performance guarantee is 10 years, 90% performance and 25 years 80%
Normal operating temp. 42°C ± 3°C
Temperature coefficient Voc -0.29 %/°C
Temperature coefficient Isc 0.05 % /°C
Temperature coefficient power -0.37 % /°C

1 inverter
Protection level: IP65 outdoor version, we recommend next to the solar panel or to be installed underneath.
Maximum humidity: 85%
Size: 163x216x27 mm
Maximum solar power: 310W
Input voltage solar from side: max. 54V
Starting voltage: 18V
Input current: max. 12A
Output voltage: 230 V (184-264 V)
Maximum current: 1.36A
Frequency: 49.8-50.2 Hz
Power factor: 95%
Idle power consumption: < 0.1 W

CE certificate

Complies with:
VDE-AR-N-4105, VDE 0126-1- 1, G83/2, UTE C15-712-1, AS4777, EN50438, EN62109, EN61000

1 pc 5 meter long network connector
The cable is delivered with bare 3 cores, if If you want to plug it into an outlet, you need to buy a grounded plug!

1 inverter plug-in plug

Solar panel into socket

The 300W solar panel system feeds the energy obtained from the solar panel directly into the home's network, thereby reducing the amount of electricity coming through the electric meter, i.e. reducing consumption and saving money. What the solar panel produces is used by your apartment and only the rest through the electric meter.
Attention, this system requires an electric meter that measures back and forth, which you can request from your electricity supplier!

An electrician is not required for installation.

You set up the solar panel, connect the inverter right next to it - even outdoors - plug its mains cable into the outlet and immediately start generating electricity and saving.< /p>

You can easily connect the inverter to your socket with the pre-installed 5-meter mains cable.

You can find the necessary materials for fixing the solar panels in our online store, but you can also make them yourself.

Who is this simple and brilliant system particularly suitable for?

Where there is electricity consumption during the day (where there is not?), e.g. air conditioning, the circulation pump of the heating or solar collector, the refrigerator, the electric boiler, washing machine or dishwasher and all the adapters and standby TVs...

The significant consumption of these can be reduced during sunny periods.

In case of suitable location and good weather, 1.5 kWh of energy can be achieved per day.

We recommend that you consult your electricity supplier before use.

Principle of operation: The task of the inverter is to transform the energy produced by the solar panels direct current to mains voltage. which complies with the 230 V / 50 Hz standard. Our unused energy is lost, so it is worth buying a system as large as the house's consumption during the day.

Important: in the event of a power failure, the inverter will also shut down, thus avoiding the risk of electric shock.

Attention! In Hungary, the regulation only allows inverters to be connected in a switch cabinet, please contact your service provider for the permissions required for connection!
