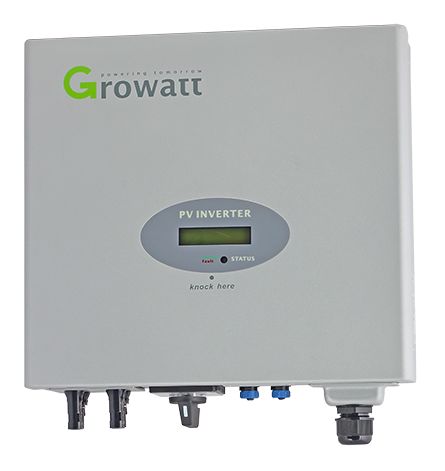

5 kW solar inverter - Growatt feed-back inverter Nominal power: 4600 W Maximum power: 5000 W

Inverter

Maximum solar panel input power: 5000 W
Maximum DC voltage: 580V DC
Permissible input voltage at full load. range 250V-450V
Maximum DC current: 20A
Strings number: 2
Number of MPPT points: 2
Network connection 1 phase
Solar panel starting voltage 120V
MPPT voltage range 99.5 %

Network page
Rated power: 4600W
< span style="color: #000000;">Maximum power 5000 W
Maximum current: 22.3A
Maximum efficiency: 97%
European efficiency: 95.5%
Output voltage: 200 ~ 250 Vac
Permitted mains frequency: 40.1Hz – 50.9Hz
Standby power consumption: 5W
Night power consumption: 0.5W
Display type: LCD
Safety and environmental conditions
Protection level: IP65
Cooling: natural cooling
Operating temperature range between -25 ~ +60 °C
Noise level ≤25 dB
Permitted humidity 0 ~ 95% non-condensing
Optional communication connections RS485/RS232

Communication connections Bluetooth
Technical data

Dimensions: (W x D x H) 362 x 329 x 132 mm
Weight: 21 kg

Certificates: EN50178, VDE0126-1-1, EN6100-3-2, CCE / TÜV, EN61000-6-2, EN61000-6-3, EN61000-6 -4, IEC-62109, DK5940,G83,RD1663

ELMŰ, DÉMÁSZ and EON are licensed

The 1-phase Growatt MTLS series can handle 2 parallel input strings, handles 2 working pots.
The MTLS series inverter can be connected to one phase, a good choice for your family home.
High, 97% efficiency.
With the MTLS series, all solar cells must face the same direction.
Built-in DC switch
Design without transformer
Small size sharp light weight
Bluetooth technology
Audible feedback
Multilingual display
