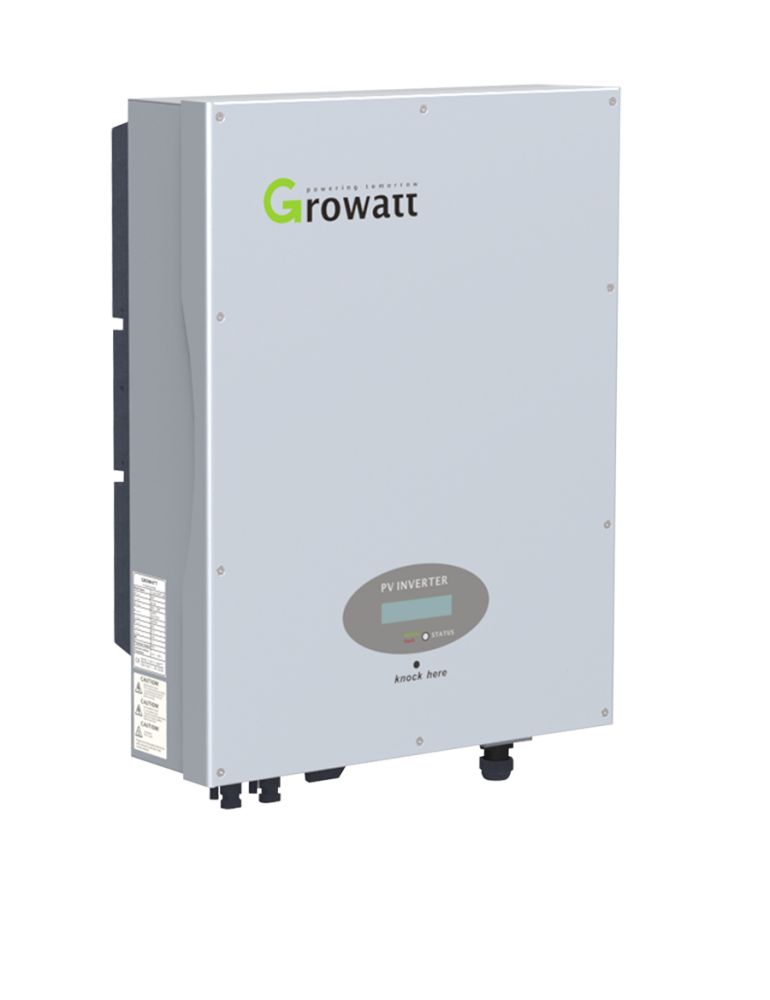

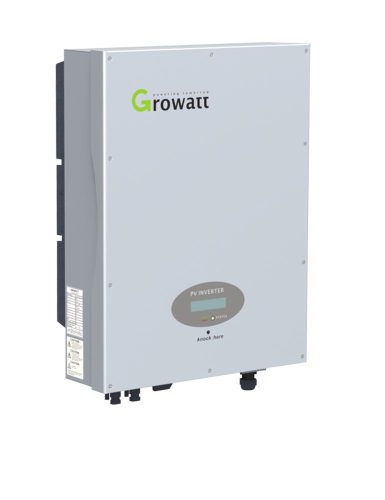

3-phase 4 kW solar inverter - Growatt grid feed-back inverter Nominal power: 4000 W

Growatt inverter

Maximum solar input power: 4200 W
Maximum DC voltage: 800V DC
Permissible input voltage at full load. range 140V-800V
Maximum DC current: 9A
MPPT number of points: 2x1
Mains connection 3 phases
Solar panel starting voltage 150V

Network page
Rated power: 4000W
< span style="color: #000000;">Maximum power 4000 W
Maximum current: 6.4A
Maximum efficiency: 97.1 %
European efficiency: 96.5%
Output voltage: 230 ~ 400 Vac
Permitted network frequency: 44Hz – 55Hz
Standby power consumption: 5W
Night power consumption: 0.5W
Display type: LCD

Safety and environmental conditions
Protection level: IP65
Cooling: Smart cooling
Operating temperature range between -25 ~ +60 °CNoise level ≤35 dB
Permitted humidity 0 ~ 95% non-condensing< br />Optional communication connections RS485/RS232
Optional communication connections Bluetooth
Technical data

Dimensions: (w x d x h) 433 x 560 x 200 mm 433/560/200
Weight: 30 kg

Certificates: EN50178, VDE0126-1-1, EN6100-3-2, CCE / TÜV, EN61000-6-2, EN61000-6-3, EN61000-6 -4, IEC-62109, DK5940,G83,RD1663

ELMŰ, DÉMÁSZ and EON are licensed

The 3-phase Growatt UE series can receive 1-1 input strings on 2 workstations.
The UE series inverter can be connected to 3 phases, it is a good choice for your family home, where you need to invest in network development if the service provider cannot accept the high power on one phase.
High, 97% efficiency.
The UE series has 2 different orientations a solar panel field can be installed.
Built-in DC switch
Transformerless design
Small size sharp light weight
RS232, RS485 and Bluetooth technology
Audible feedback
Multilingual display
