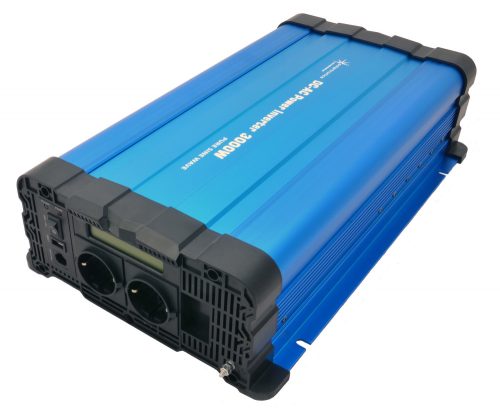

Inverter

Weight: 10 kg
Dimensions: 480x262x113< span> mm
Output voltage: 230 V (50Hz)
Peak power: 6000W min. 20 ms for start-up or cold current
Socket: 2x grounded socket
Continuous power: 3000 W
Input voltage: 24V
Low voltage shutdown: < 20.8V
Overvoltage shutdown: > 30.0V
< span style="color: #000000;">Relative humidity: < 60%
USB device power supply: 1x5V 2.1A
Overheating protection: > 60°
Low voltage alarm: 21.2V
Efficiency: > 85% (typically approx. 92%)
Average energy consumption in standby mode - without load: typically at >25 V approx. 13 W, up to 35 W at <23 V
Connection cable cross-section: 16 mm²
Connection cable length: approx. 50 cm
Fan control: continuous power approx. from 10%

More information:

Inverter

With this device, you can generate 230V alternating voltage from 24V direct current (e.g. from car batteries, truck batteries or batteries of solar isolation systems), and thus you can operate many household appliances with a nominal voltage of 230V.< /span>

Features:

Automatic shutdown in case of overload or short circuit.
Suitable for use in motor vehicles.
Robust housing made of aluminum and cast sheet metal.
Certificates: converter, CE, RoHS; E8 production according to DIN ISO 9001:2000.

Inverter 24V 3000W voltage converter 480x262x113 mm pure sine wave voltage transformer
