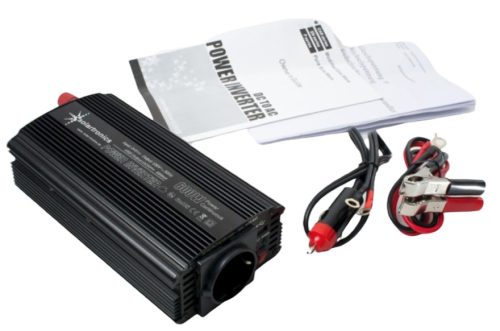

Current converter for isolated power system

Inverter technical data:

Weight: 1.1 kg
Dimensions: 229 x 103 x 59 mm< /span>
Output voltage: 230 V (50Hz)
Peak power: 1200 W, max for 20 ms starting currents
Socket: 1 230 V output
Continuous power: 600 W.
Overvoltage switch-off: 30 V
Disable overheating protection:> 60 °
Input voltage operating range: 24 V
Low voltage cut-off: 20.8 V
Low voltage alarm: 21.2 V
Relative humidity: <60%
Efficiency:> 85%

Certificates: CE, RoHS; E8 production according to DIN ISO 9001: 2000

More information:

24V 1200W peak power inverter

With this inverter, you can independently generate 230V voltage from your 24V battery (charged from an isolated solar system).

The inverter is a modified sine wave, which means that it is not suitable for driving rotating machines. If you want to operate a rotating machine from your isolated system, choose a pure color inverter or low-voltage driven equipment. (12V cooler, 12V led lighting, 12V pump, etc.)
The inverter is protected against reverse polarity (with fuse).
This type is also suitable for use in cars and trucks!

24V 600/1200 W modified sine wave inverter. Excellent for small isolated systems that operate lighting or security technology
