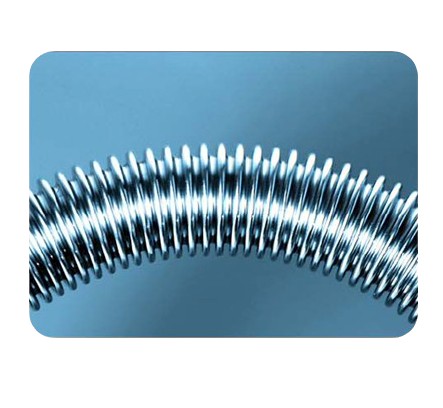

DN16 flexible water pipe throat. Ribbed pipe corresponds to 3/4" steel or 18 mm copper pipe. Acid-resistant, i.e. stainless solar collector line!

• Details
• Info

Details

Stainless steel connecting pipe

Outer diameter: 21.5 mm +/- 0.4 mm
Inner diameter: 16.2 mm +/- 0.4 mm
Operating pressure at 20° up to 5 bar
Surface (this is important when making a heat exchanger): 0.1 m2/flow meter
Liquid requirement: ~2.7 dl/flow meter
Stainless steel material 1.4404
Complies with: DIN EN ISO 10380
Temperature range between -270°C +600°C

More information:

Stainless steel throat tube

Price per meter, minimum order quantity 4 meters.
3/4" fits steel or for the 18 mm copper pipe.
Stainless, on-site flanged, flexible pipeline solar collectors and the it can be used as a connecting line for a hot water storage.

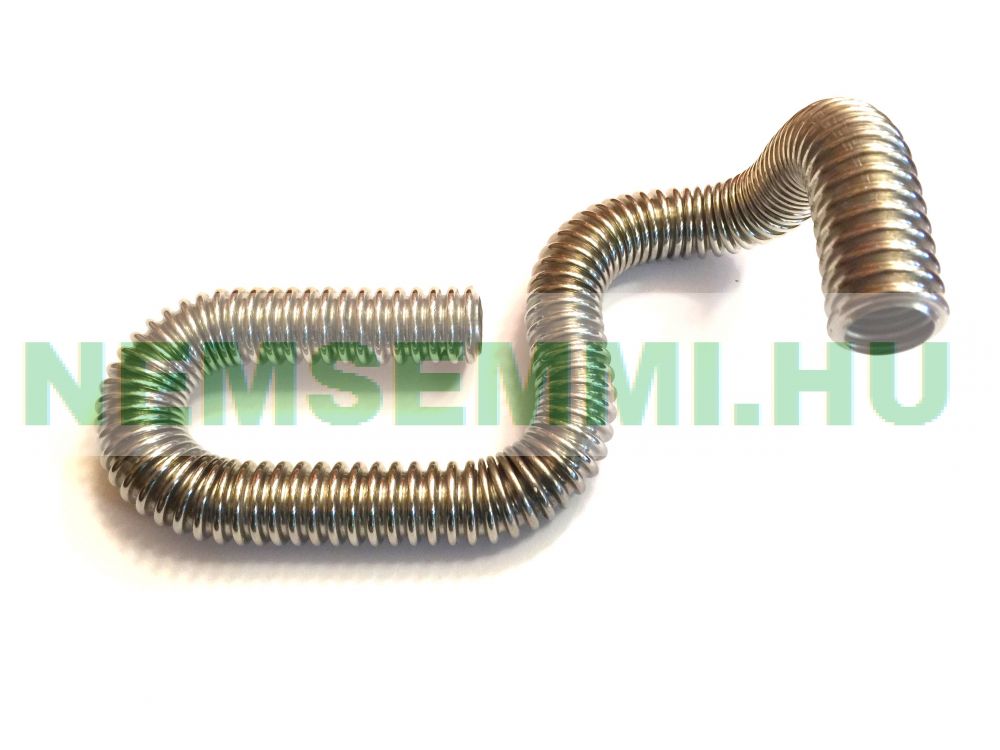

The pipeline can be bent as desired, no fittings are required, no soldering or pressing is required.
They are corrosion resistant even in environments saturated with chemicals.

Find the connectors among the products.

Info

Vonalkód:

00088640

MPN-kód:

NS000988

Weight:

150 g/m

Minimum order quantity:

4 m
