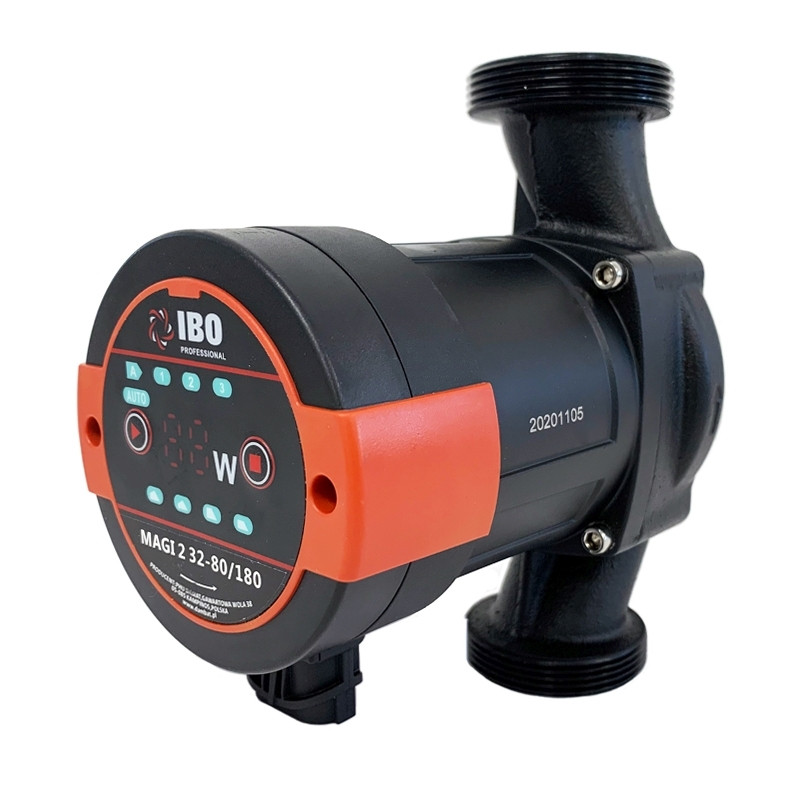

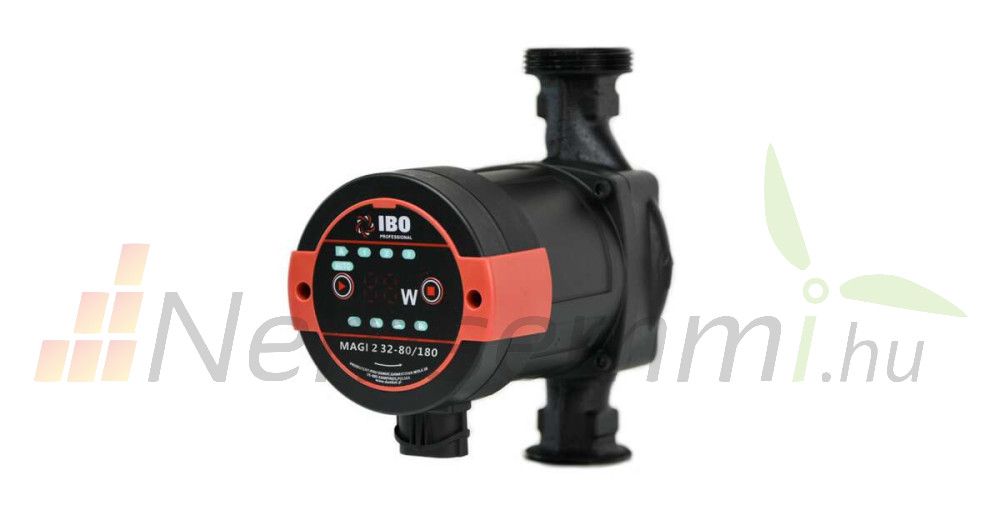

Class A circulation pump

Type: IBO MAGI2 32-80/180
Voltage: 230V
Pipe Connection: 2" x 1 1/2"
Lifting height: 8 m
Delivery capacity: 90 l/min
Power: (230V) 5W - 70W
Installation length: 180 mm
Max temperature: + 110°C
Manufacturer: IBO Poland
Warranty: 3 years
Protection: IP44< /span>

For help, the plumbing thread dimensions are in inches and millimeters.

Zoll	Outer size
1/8″	10 mm
1/4″	13.2 mm
3/8	16.7 mm
1/2″	21.2 mm
3/4″	26.7 mm
1″	33.3 mm
1 1/4″ = 5/4"	42.2 mm
1 1/2″ = 6/4"	48.2 mm
2″	60 mm

More information:

Electronic circulation pump

IBO MAGI circulating pumpswith differential pressure regulator and they are equipped with a magnetic motor, which automatically and continuously adjusts the pump capacity according to the needs of the system.

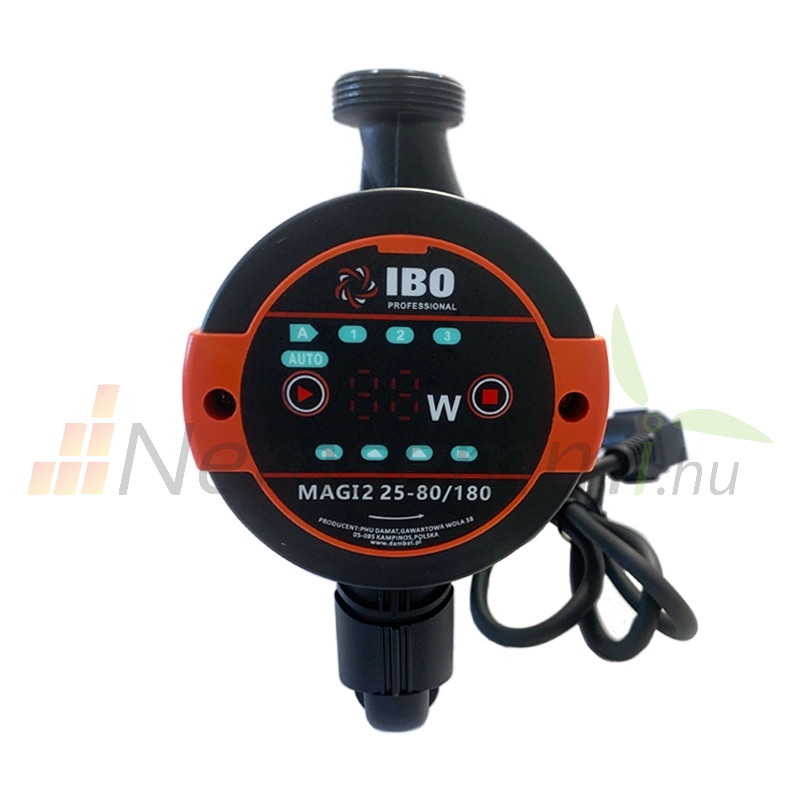

The pump control panel is placed on top of the motor, which makes it easier to use. The current electricity consumption is shown on the display.
The energy class, electronically controlled heating pump.
It automatically sets the required speed, but it can also be controlled manually.

The pump may only be installed with a horizontal motor shaft.

Manufacturer: IBO, Poland

Electronically controlled circulation pump 2-year warranty 32/80/180 automatic steps, max. 70W with 2" x 1 1/2" connector, energy class A
