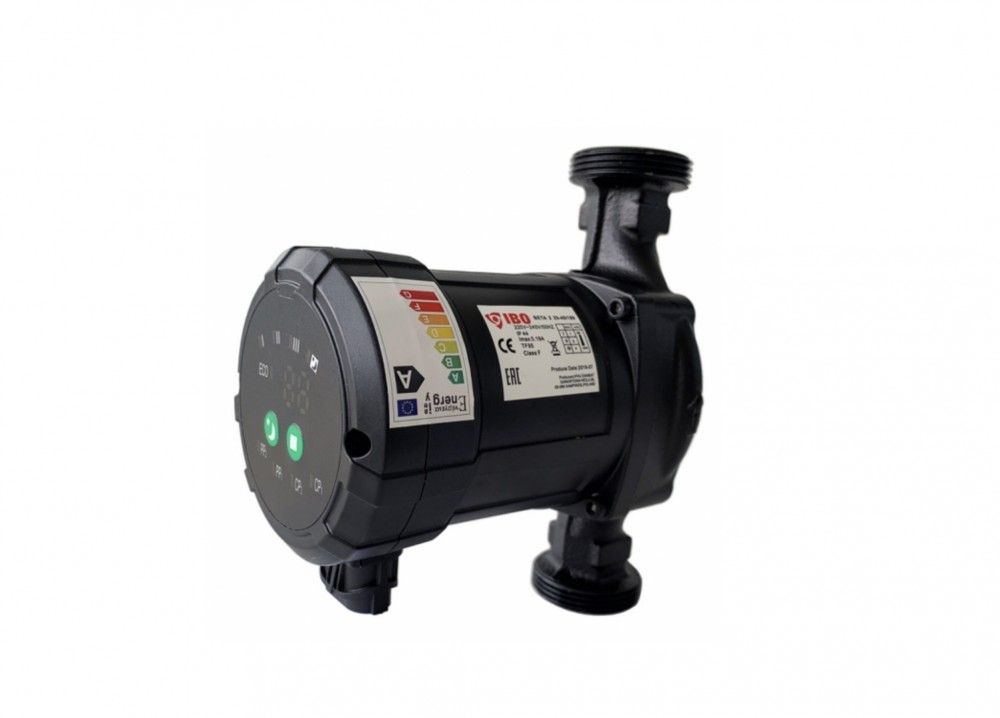

Electronically controlled circulation pump IBO 2-year warranty 25/60/130 automatic speed, max. 45W with 1½" connector, energy class A

Class "A" circulating pump

Type: IBO BETA2 25/60-130
Voltage: 230V
Power: automatic or manual, 5-45W
Temperature range: 0 - +110°C
Maximum pressure: 10 bar
Maximum circulation: 5-55 liters/minute
Distance of connectors: 130 mm
Connector size: 1½"
Lifting height max : 6 m
Protection: IP44
Dimensions in on drawing

For help, the plumbing thread dimensions are in inches and millimeters.

The advantages of electronically controlled circulation pumps include:

Energy efficiency: Electronic control allows you to control the speed or power of the pump, so energy use becomes more optimal. Operation adapted to intermittent loads helps reduce energy consumption.
Quiet operation: Electronic control of pumps often results in quieter operation, which can be particularly important in environments where noise reduction is desirable.
Precise control: The electronic control allows precise and precise speed control of the pumps, which can adapt to changing conditions and needs.
Longer service life: The electronic through control, the pumps can operate more gently, which can result in a longer service life.

It is important to note, however, that electronically controlled circulation pumps generally involve more complex technology and higher costs than traditional pumps. Before the application, it is important to consider the needs of the given system and the comparative cost-benefit ratio.

Electronic circulation pump

An "A" energy class, electronically controlled heating pump.
It automatically sets the necessary speed, but can also be controlled manually.
The pump may only be installed with a horizontal motor shaft.
Manufacturer: IBO, Poland

Electronically controlled circulation pumps are devices that help circulate liquids, and thanks to their electronic control, various operating parameters can be set and regulated. These pumps are widely used in various industries and applications, such as heating and cooling systems, hot water systems, air conditioners, swimming pools, water supply systems.
