Thermometer and tank solar collector control from the nemze

Solar collector temperature meter and water level indicator

Operating voltage: 220V~50Hz
Operating environment: -10°C~40 °C
Self-consumption: 4W
Temperature range: 0~99°C
Temperature measurement accuracy: +- 2°C
< span style="color: #000000;">Water level: 25, 50, 75, 100%
External size: 115*170*28 mm

More information:

Tank solar collector control

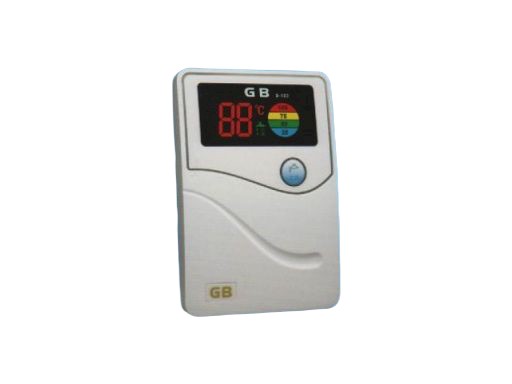

Tank solar collector control S-103 thermometer and water level indicator with 20 meter cable.
Intelligent control for a solar collector with an external tank, but it can also be good for any other task.

Functions:
- Water temperature display: displayed by the tank between 0~99°C the temperature of your water.
- Water level display: in the range of 25, 50, 75, 100% shows the current tank water level
- automatic refill when the water level is too low,
- too automatic water inlet at high temperatures
- Manual and automatic water refill with overfill protection.

Accessory: temperature and water level sensor probe with 20 meter cable
Water level adjustment is not included It can be done with a 12V solenoid valve.

Tank solar collector thermometer and water level control S-103 with 20 meter cable - For tank systems, automatic water refill

Solar collector temperature meter and water level indicator

Tank solar collector control
