Nordic cylindrical heat exchanger 175kW, for pool heating, t

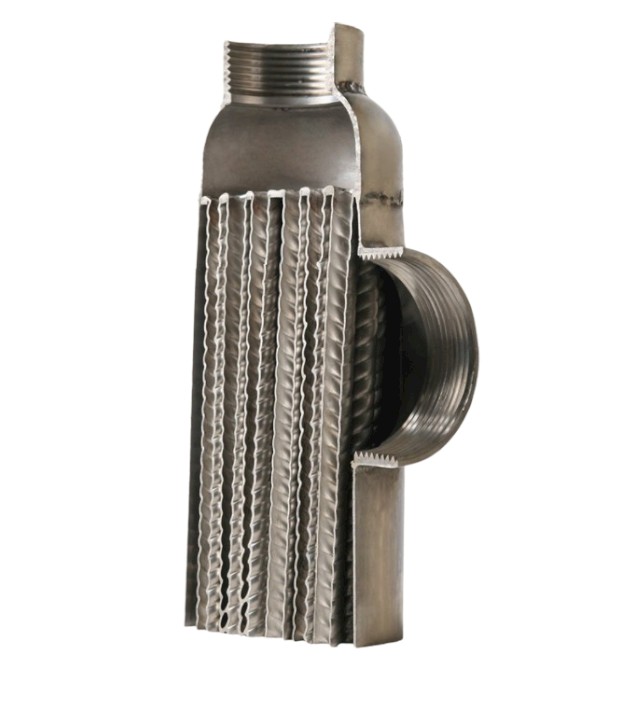

Titanium cylindrical heat exchanger

Material: titanium

Diameter: 114 mm
Total length: 900 mm

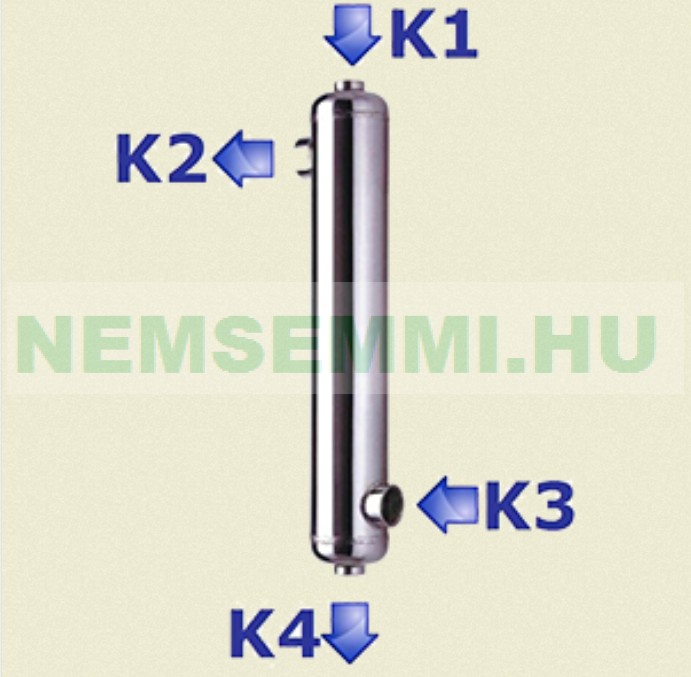

Connectors:
Spiral tube (heating) side: 2 x 2" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 2½" internal thread K2, K3
Heat exchanger surface: 1.55 m²

Rated power: 175 kW at a temperature difference of 60 °C T

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating side: 68 l/min
Heated side: 432 l/min
Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Salt water pool heat exchanger titanium design

Suitable for salt water!
For floor heating, swimming pool water heating.
For making domestic hot water
Heat exchanger for solar energy utilization
As a heat pump
Oil cooling and heating

Rated power is based on a 60°C difference between the heater and the heated medium. For other temperature differences, the performance is:
60°C = 100%
50°C = 85%
40°C = 70%
30°C = 55%
If one of the media is glycol, the capacity will be 90% of the nominal value.

Nordic cylindrical heat exchanger 175kW, for pool heating, titanium, recommended for up to 200m3 pools to replace the Spirec swimming pool heat exchanger

Titanium cylindrical heat exchanger

Salt water pool heat exchanger titanium design
