Nordic cylindrical heat exchanger 105kW, for pool heating, t

Titanium cylindrical heat exchanger

Material: titanium
Diameter: 90 mm
Total length: 830 mm

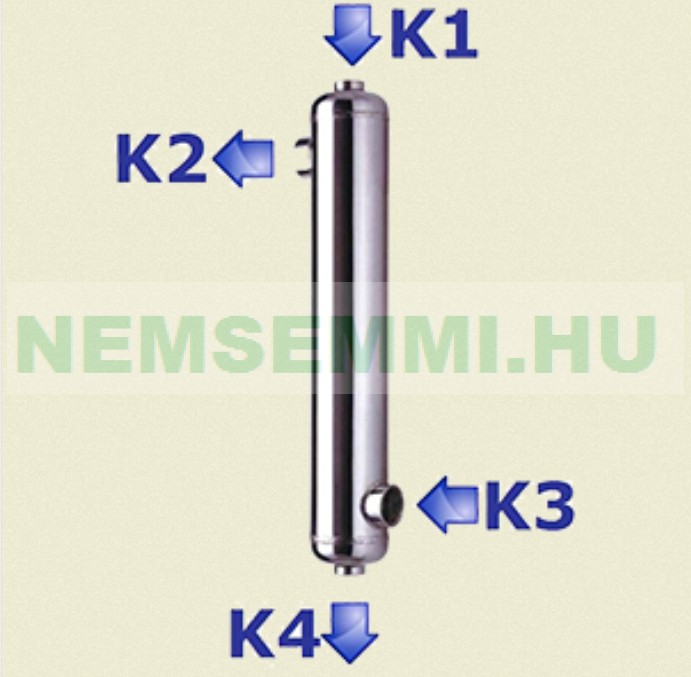

Connectors:
Spiral pipe (heating) side: 2 x 1½" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 2" internal thread K2, K3
Heat exchanger surface: 0.85 m2
Rated power: 105 kW at a temperature difference of 60 °C ΔT
Change in performance with decreasing temperature difference ΔT

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow rate:
heating side: 48 l/min< br />Heated side: 358 l/min
Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Salt water pool heat exchanger titanium design

Suitable for salt water!
For floor heating, swimming pool water heating.
For making domestic hot water
Heat exchanger for solar energy utilization
As a heat pump heat exchanger
For cooling and heating oil

Rated power is based on a 60°C difference between the heater and the heated medium. For other temperature differences, the performance is:
60 °C = 100%
50°C = 85%
40°C = 70%
30°C = 55%
If one of the media is glycol, the capacity will be 90% of the nominal value.< /span>

Nordic cylindrical heat exchanger 105kW, for pool heating, titanium, recommended for up to 120m3 pools to replace the Spirec swimming pool heat exchanger

Titanium cylindrical heat exchanger

Salt water pool heat exchanger titanium design
