Titanium cylindrical heat exchanger

Material: titanium

Diameter: 76 mm
Total length: 780 mm

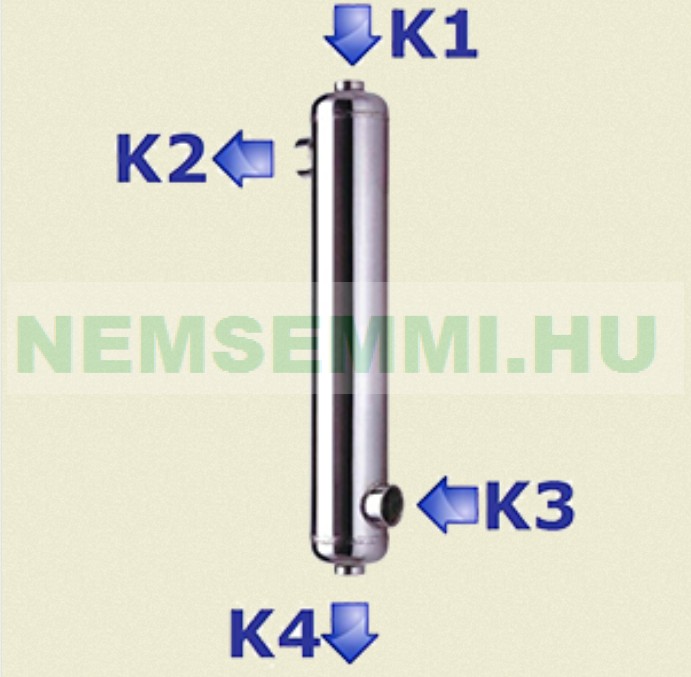

Connectors:
Spiral pipe (heating) side: 2 x 1½" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 2" internal thread K2, K3
Heat exchanger surface: 0.64 m²

Rated power: 88 kW at a temperature difference of 60 °C ΔT

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating side: 42 l/min
Heated side: 325 l/min
Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Salt water pool heat exchanger titanium design

Suitable for salt water!
For floor heating, swimming pool water heating.
For making domestic hot water
Heat exchanger for solar energy utilization
As a heat pump
Oil cooling and heating

Rated power is based on a 60°C difference between the heater and the heated medium. For other temperature differences, the performance is:
60°C = 100%
50°C = 85%
40°C = 70%
30°C = 55%
If one of the media is glycol, the capacity will be 90% of the nominal value.

Nordic cylindrical heat exchanger 88kW, for pool heating, titanium, recommended for up to 90m3 pools to replace the Spirec swimming pool heat exchanger
