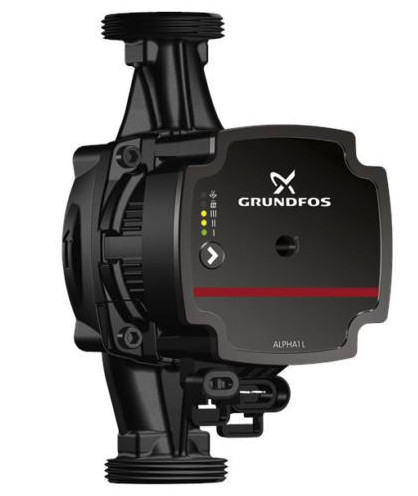

Name: Heating circulation pump GRUNDFOS ALPHA 25-60
Brand: GRUNDFOS ALPHA1
SKU: GRUNDFOS_ALPHA1_25-60-180_SZIVATTYU
Price: 200.55 EUR

Circulating pump "A"

Type: GRUNDFOS ALPHA1 25-60
Voltage: 230V< br />Power: 4-45 W
Maximum pressure: 10 bar
Installation size (distance between the two threaded parts: 180 mm

The circulation pump box contains the connector for the 230V input, you will need accessories for PWM control! You can find the additional cable among our products.

More information:

Grundfos resistance-controlled circulation pump

In the case of a heating or solar collector system, it is recommended to connect it to the cooler branch going to the collector.
The pump may only be installed with a horizontal motor shaft.

The circulation pump is a piece of equipment that is particularly useful in heating, cooling and water supply systems. Here are some areas where it comes in handy:
Heating systems: A circulation pump is responsible for circulating hot water or heating medium between radiators, radiators or underfloor heating systems. This ensures that we reach the same temperature throughout the house or building and prevents the formation of cold spots.
Cooling systems: The use of a circulation pump in cooling systems helps to circulate the coolant more efficiently. This is used, for example, in cars or industrial cooling systems.
Hot water supply: A circulation pump allows hot water to be delivered to faucets and showers faster, saving time and water.
Pumps in water movement: Circulating pumps are often used in the water movement of pools, garden ponds, and other water systems.
Various industrial applications: Circulating pumps are also used in industrial environments, for example in material handling, cooling, process control or pumping systems.
