Solar collector station and intelligent solar collector cont

Solar pump station

Pump: GRUNDFOS Hybrid UPM3
Flow rate: max 63 liters/minute
Consumption: 2-52W
Connections 1"
Maximum pressure: 6 bar
Maximum temperature: 160°C
EPDM seals,
EPP external insulating box
PWM controlled Eco solar pump
flow meter and regulator
Enclosure dimensions: 400x250x240 mm
What else you will need for the safe operation of the solar collector:
-expansion tank connection point
-6 bar safety valve
-1 pc pressure gauge
-1 pc flow meter

Another recommended accessory is filler drain tap

More information:< /p>

Solar pump station

Two-sided pump station, which includes the fittings for the forward and return lines of the solar circuit.
Max. pressure: 10 bar
Connections: 1"
The solar station is a prefabricated compact unit that contains most of the equipment and fittings required for the operation of solar collectors connecting it can save a lot of work and space.

Attention! The 2-core cable of the pump goes to low-voltage electronics! Under no circumstances should you supply it with 230V, because it can lead to the burning of the electronics and also voids the warranty!

The correct connection: brown cable to PWM, < strong>blue cable to GND

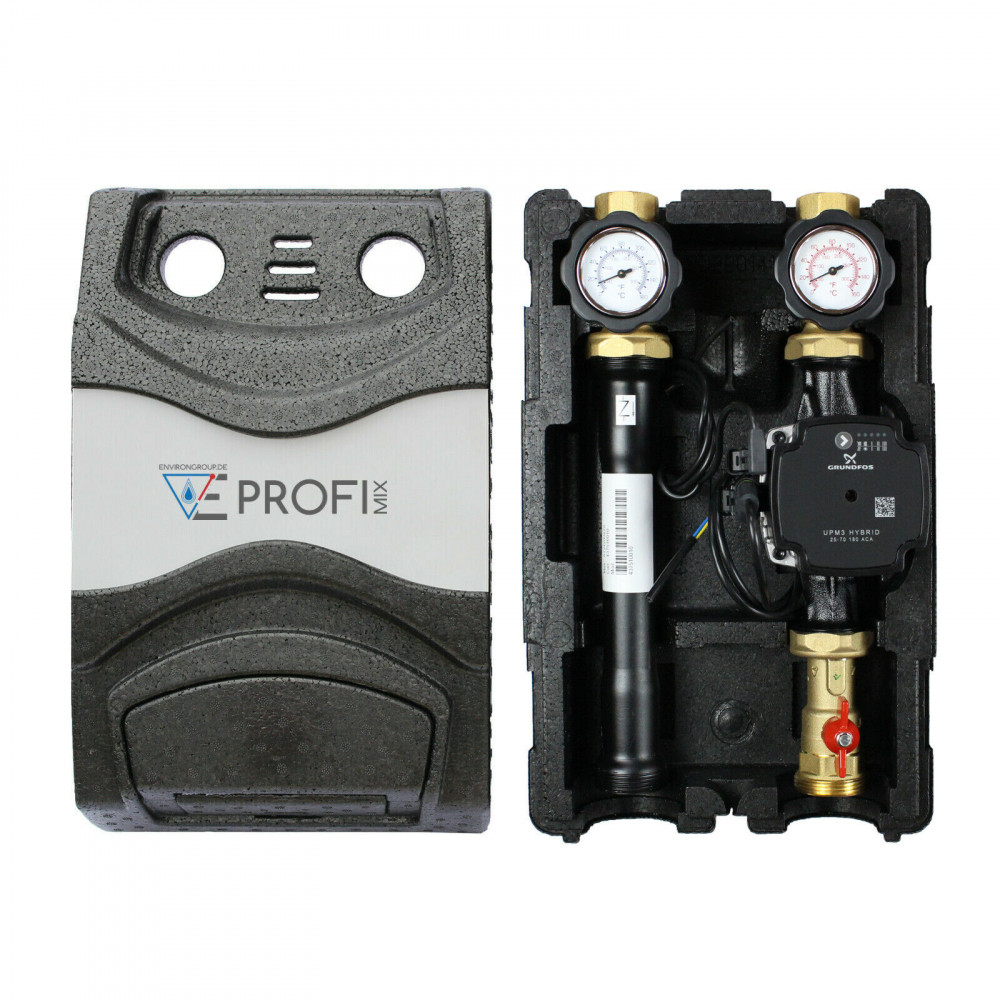

Solar collector pump station max 63 l/p 2-sided GRUNDFOS circulation pump group thermally insulated with 2 thermometers, shut-off fittings
