Gravity heating

This unit is part of the alcohol-gravity system.

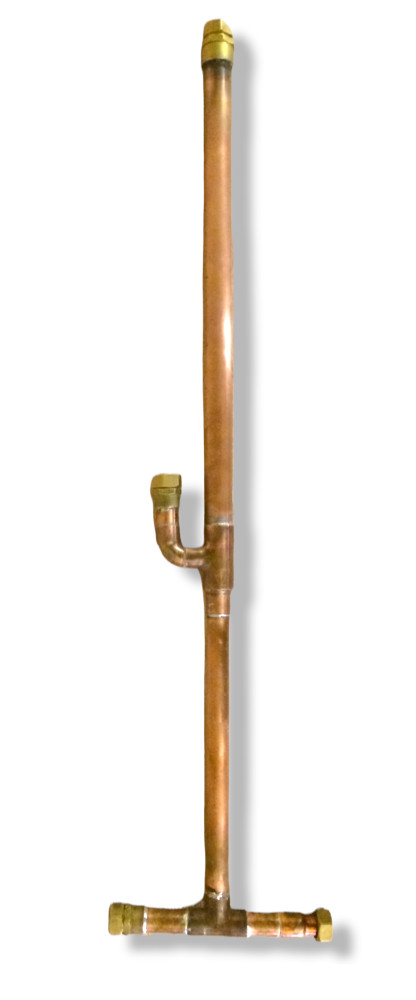

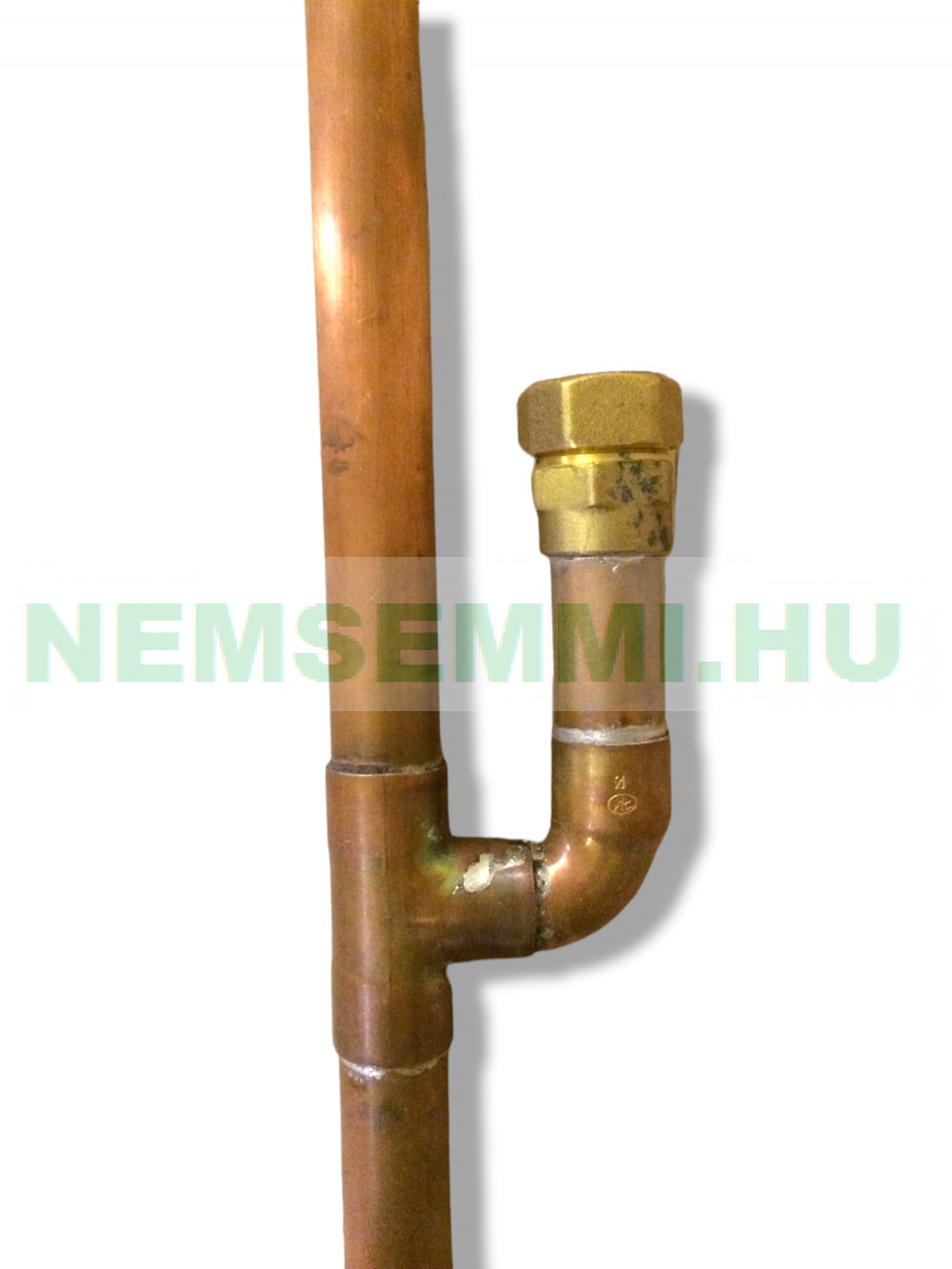

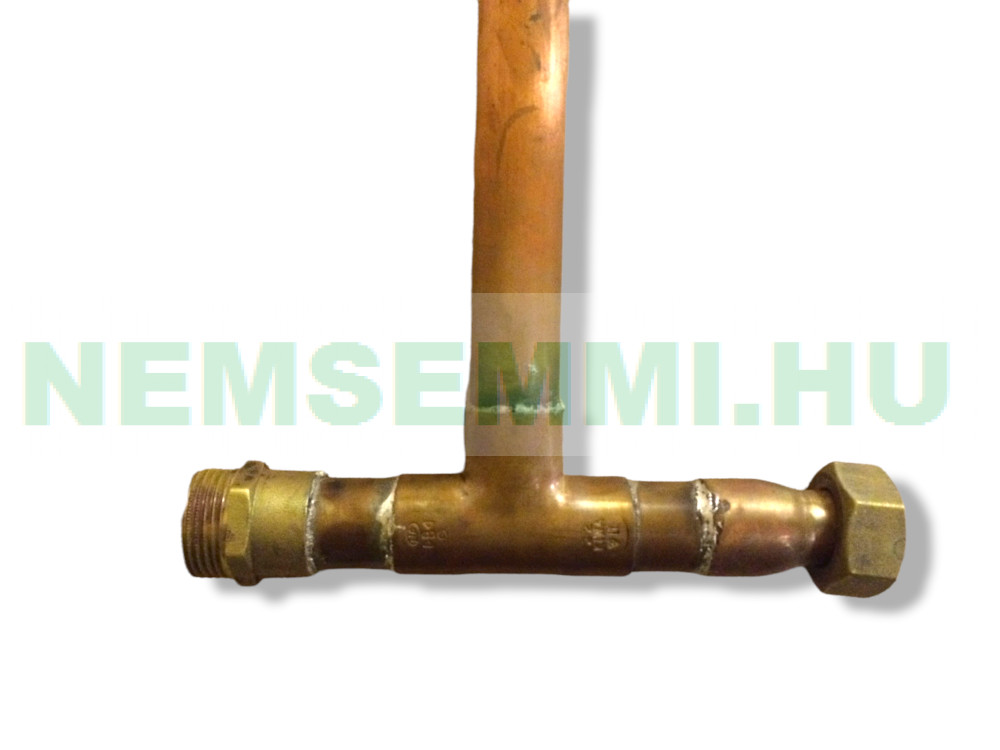

The inverted T shape is one of its lower 3/4" connector is connected to the upper branch of the boiler's heat exchanger, and the other to the upper outlet of the collector. On the U-shaped filling hole you can fill the system,and the part above the U shape plays the role of the equalization tank.
To continue the installation, we recommend a copper or stainless (inox) throat tube with a rubber (!) seal.
The base 22 mm pipes can be adapted to a larger system by extending the pipe that acts as an equalizing tank.
Recommendation: 22 mm copper or DN16 inox pipe for pipe lengths over 4 meters + 10 cm extension per meter.

Details: www.napcsap.hu

More information:

Gravikol™

Solar collector charging and balancing unit
Details: www.napcsap.hu
Capacity: max. 125 liter tank, 5 meter pipe length and 1 solar collector.
The length or thickness of the pipe above the loading opening must be increased if more solar collectors are installed or the length of the system is longer.

Gravikol™ solar collector charging and balancing unit - small system
