Gravikol™ solar collector charging and balancing unit - medium system

• Details
• Info

Details

Solar collector system

This unit is part of the alcohol-gravity system.

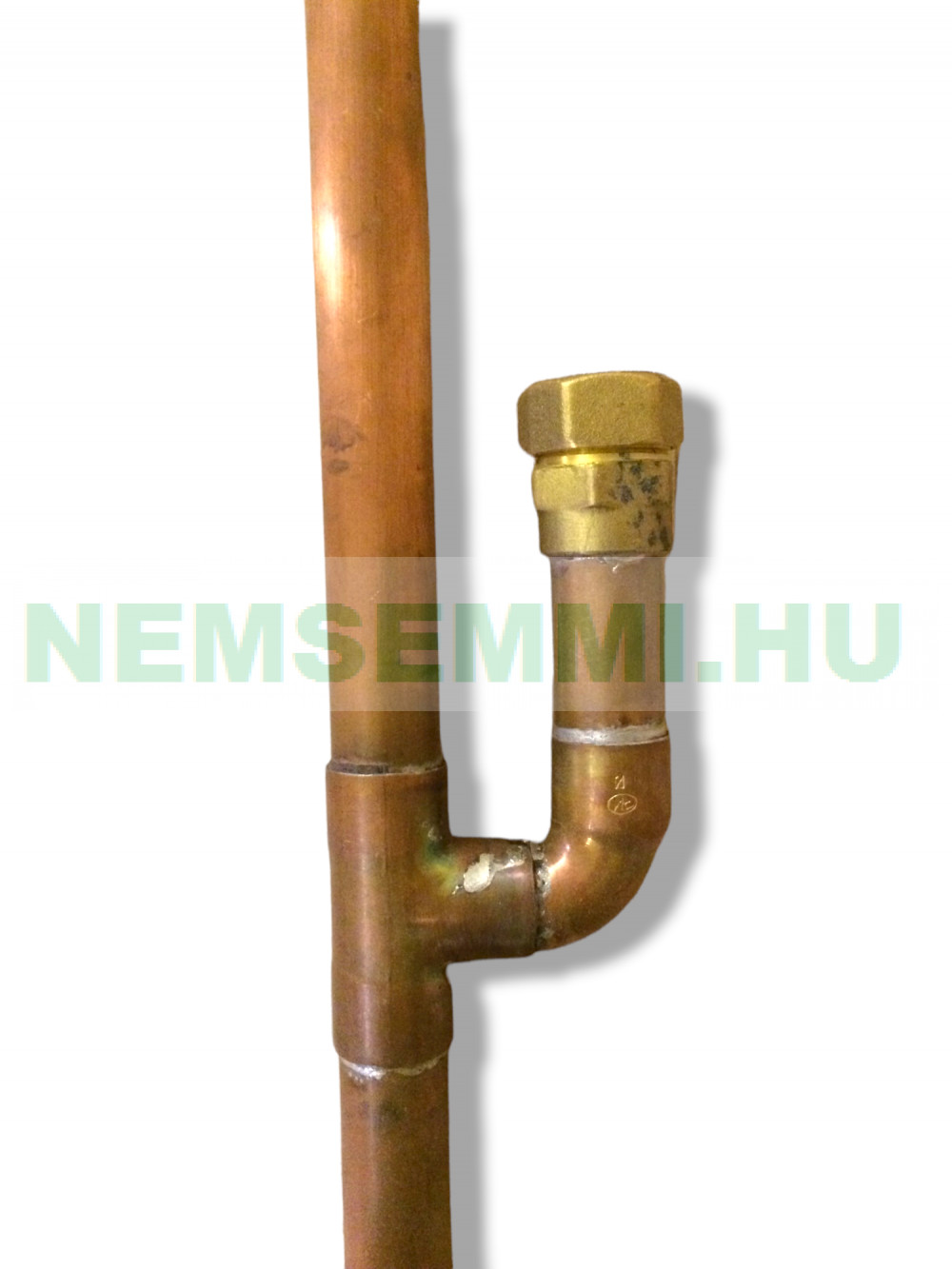

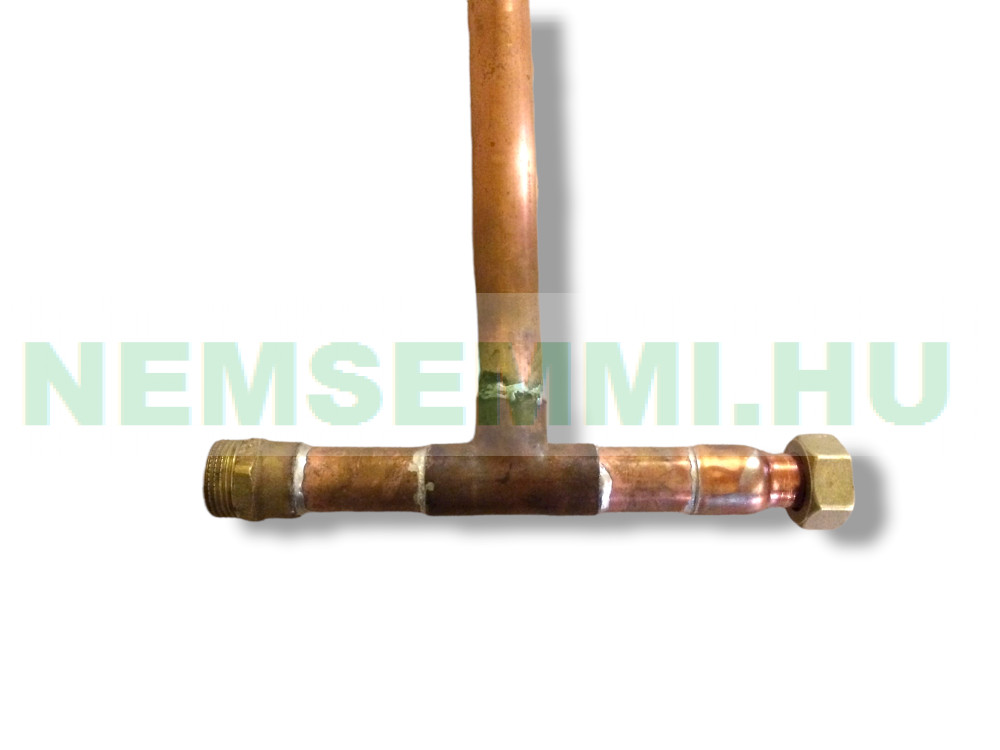

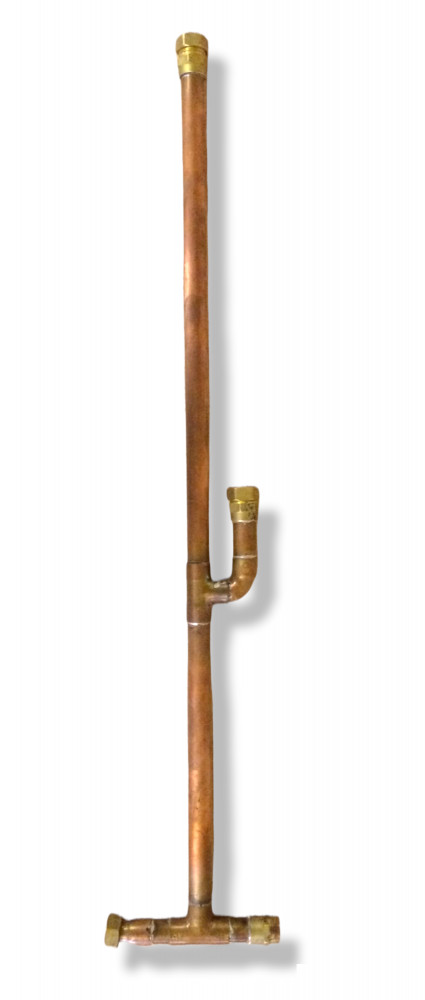

The inverted T shape is one of its lower 3/4" connector is connected to the upper branch of the boiler's heat exchanger, and the other to the upper outlet of the collector. On the U-shaped filling hole you can fill the system,and the part above the U shape plays the role of the equalization tank.
To continue the installation, we recommend a copper or stainless steel throat tube, only with a rubber seal.
The equalizer the tube acting as a tank has been increased from the basic 22 mm to 28 mm for greater capacity.
Recommendation: from 28 mm copper or DN20 inox pipe for pipe lengths over 4 meters per meter + 10 cm extension.

Details: www.napcsap.hu

More information:

Gravikol™

Solar collector system filling and balancing unit
Capacity: max 200 liter storage, 5 meters pipe length and 2 solar collectors, can be increased!
Details: www.napcsap.hu

Info

Vonalkód:

00084215

MPN-kód:

NS000735

Weight:

2 kg/pcs
