Heating cable

Operating voltage: 230V
Max. energy consumption: 17 W/m
Heated area: 1.0-1.5 m²
Cable diameter: max. 8.0mm
Min. bending radius: 30 mm
Loop distance: 7-14 cm
Operating temperature: 80°C
Connection cable length: 3.0 meters
IP protection: IP67 A

More information:

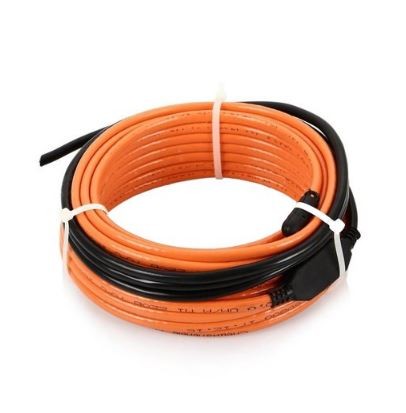

Electric heating cable

The heating cable is supplied with a 3 m long connection cable (PTC thermistor).

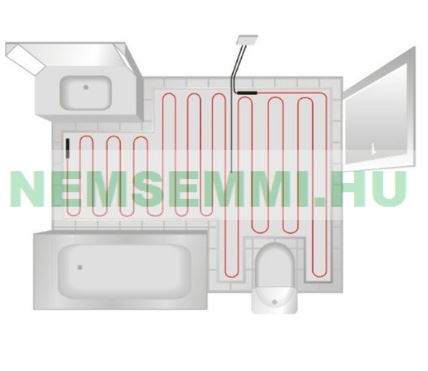

The consumption of the double heating cable is 12 W/meter. This heating cable is suitable for unusual shapes such as alcoves, corners, columns, stairs, pedestals, narrow spaces, semicircular spaces and conservatories.
The low construction height, only 4.0 mm. It allows the use of heating cables for any renovation or new construction premises.
The connection is made on one side only.
Features

with 3 m PTC thermistor cable on one side
suitable for all floor coverings: tiles, stone, wood, laminate, carpet, cork, PVC completely maintenance-free and
wear-free, ideal for rooms with different designs
excellent quality: VDE -DINEN60335-2-96, DIN EN60335-1
and manufactured in accordance with the DIN EN50366 standard.

Electric heating cable 17W/m 42.0 meters from outside to inside
