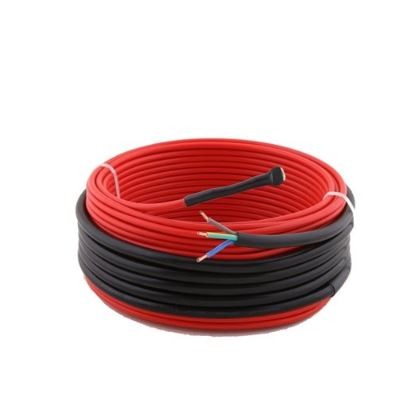

Heating cable

Operating voltage: 230V
Max. energy consumption: 290 watts
Heated area: 2-2.9 m²
Loop distance: max. 4.0 mm
Operating temperature: 80°C
Connection cable length: 3.0 meters
IP protection: IP67 A

More information:

Heating cable for electric underfloor heating

The heating cable is supplied with a 3 m long connection cable (PTC thermistor). The consumption of the double heating cable is 12 W/meter. This heating cable is suitable for unusual shapes, such as niches, corners,columns, stairs, pedestals , narrow spaces, semicircular spaces and conservatories. The low construction height, only 4.0 mm. It allows the use of heating cables for any renovation or new construction premises. The connection is made on one side only.
Features< br />

with 3 m PTC thermistor cable on one side
suitable for all floor coverings: tiles, stone, wood, laminate,carpet, cork, PVC< /span>
completely maintenance-free and wear-free
ideal for rooms with different designs
excellent quality: VDE -DINEN60335-2-96, DIN EN60335-1
and manufactured in accordance with the DIN EN50366 standard.

Electric heating cable 12W/m 24 meters from outside to inside

Heating cable

Heating cable for electric underfloor heating
