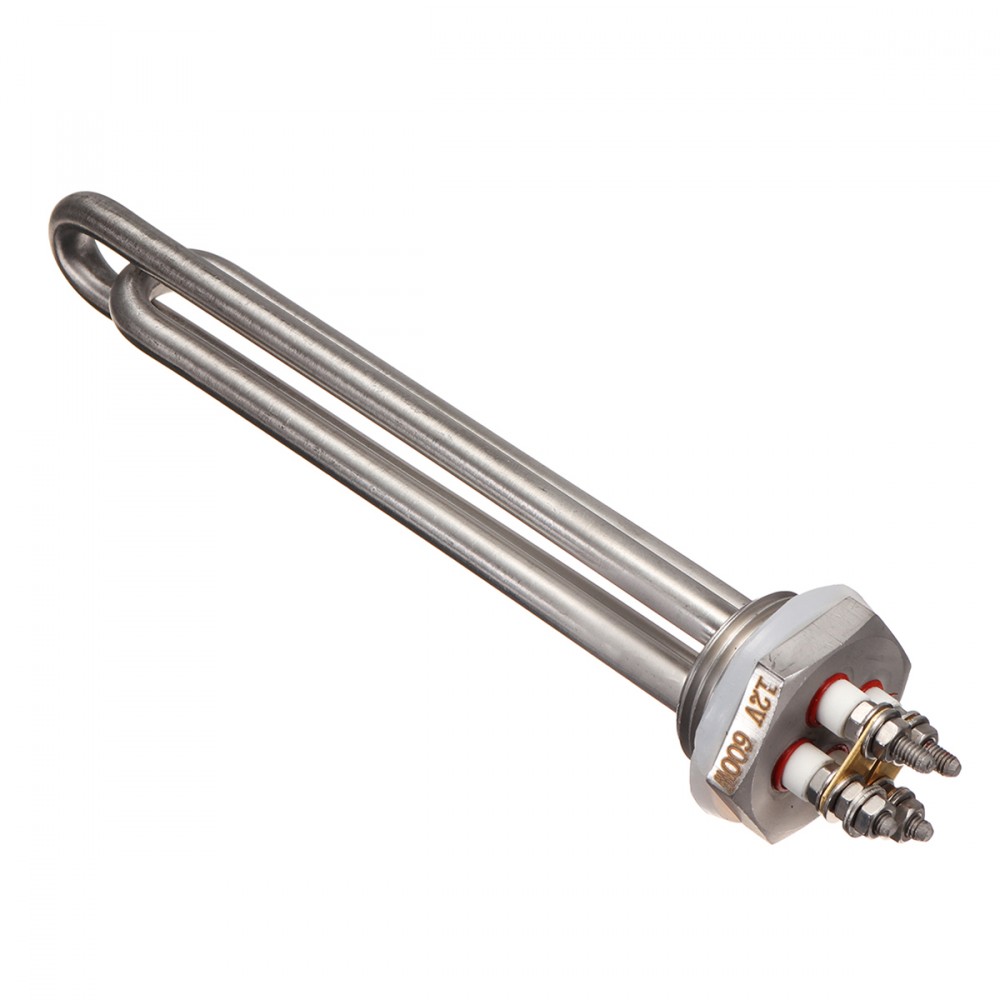

Heating pad Cekász 12V 600W 1" boiler heating pad also for wind turbine or solar panel system

• Details
• Info

Details

12V 600 watt socket

Voltage: 12V direct current or alternating current
Thread 1"
Heating filament length: 190 mm + thread length: 14 mm
Material: SUS304 stainless steel

INFO FOR HELP:

Thread
outer diameter zoll (")

13.157 mm = 1/4"
20.955 mm = 1/2"< /span>
26.441 mm = 3/4"
33.249 mm = 1"
41.910 mm = 1 1/4" = 5/4"
47.803 mm = 1 1/2" = 6/4"
53.746 mm = 1 3/4"
59.614 mm = 2"

More information:< /p>

Heating pad 600W

You can connect it directly to a 12 V direct current or alternating current windmill or solar panel.
600 W 12V heating pad with 1" thread.

INFO FOR HELP:
specific heat of water 4.2 kJ/kg Co
1 kWh=3600kJ
0.2 kWh= 720 kJ
calculation of the amount of water that can be heated
specific heat /kJ/kgCo / x weight /kg/ x temperature rise /Co/= required energy /kJ/
200 W heating element 720 kJ energy per hour, based on this, in one hour e.g. Amount of water that can be heated at 10 Co: X= 720/ 4.2*10 i.e. 17 kg The mass of water that can be heated with 10 Co.

Info

Vonalkód:

00082914

EAN-kód:

4048482434651

MPN-kód:

NS000551

Weight:

1 kg/pcs
