Solar pump station

Pump: ENVIRON EcoStar 25/6-180
Flow rate: max 60 liters /min
Consumption: 3-43W
Pump connections 6/4"
System connections 1"
Maximum pressure: 6 bar
Maximum temperature: 160°C
EPDM gaskets,

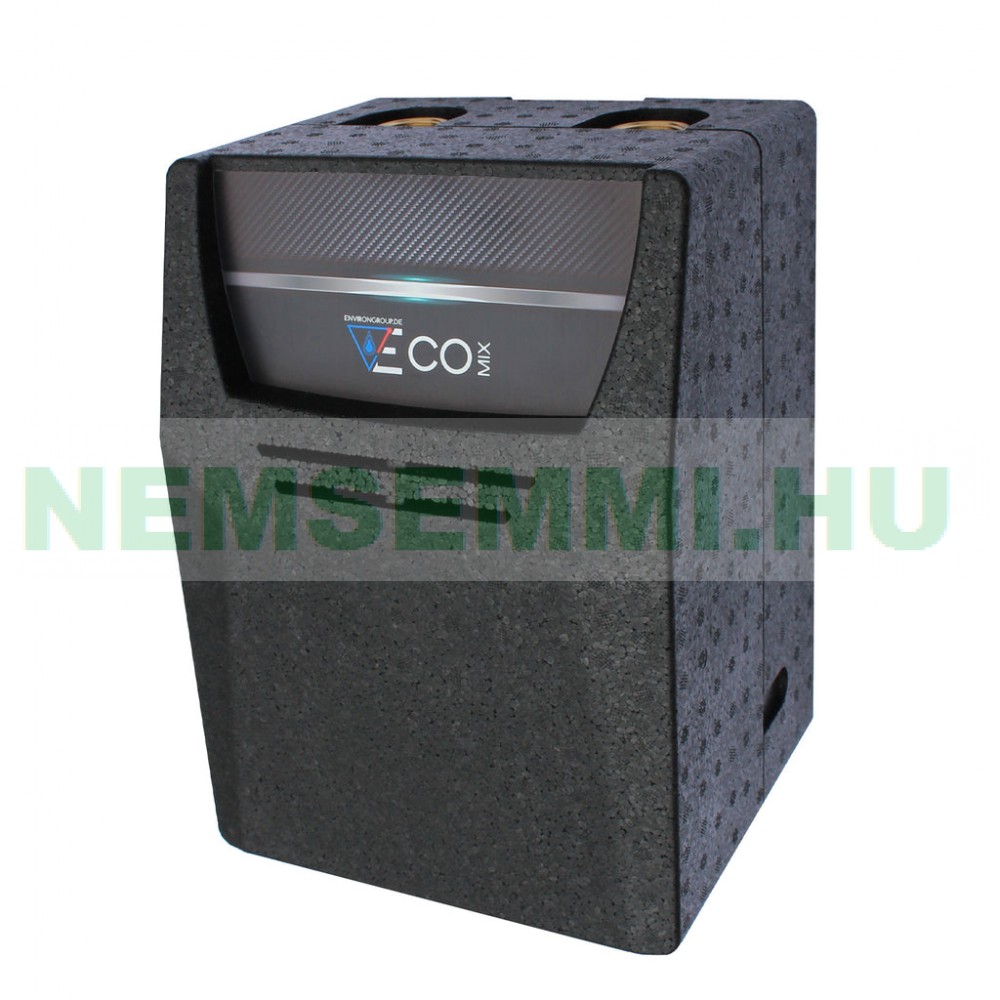

EPP external insulation box
Eco solar pump with PWM control
flow meter and regulator
Enclosing dimensions: 400x250x240 mm

What else you will need for the safe operation of the solar collector:
-expansion tank connection point
-6 bar safety valve
-1pc pressure gauge
-1 pc flow meter

Another recommended accessory is filler drain tap
More information:
< h2>Solar pump station
Two-sided pump station, which includes the fittings for the forward and return lines of the solar circuit.
Max. pressure: 10 bar
Connections: 1"
The solar station is a prefabricated compact unit that contains most of the equipment and fittings required for the operation of solar collectors connecting it can save a lot of work and space.

Attention! The 2-core cable of the pump WHICH IS NOT INCLUDED IN THE PRODUCT, can be purchased here goes to low-voltage electronics! Under no circumstances should it be connected to 230V voltage, because it can lead to the electronics burning and also voids the warranty!

Correct connection: black cable to PWM, red cable to GND

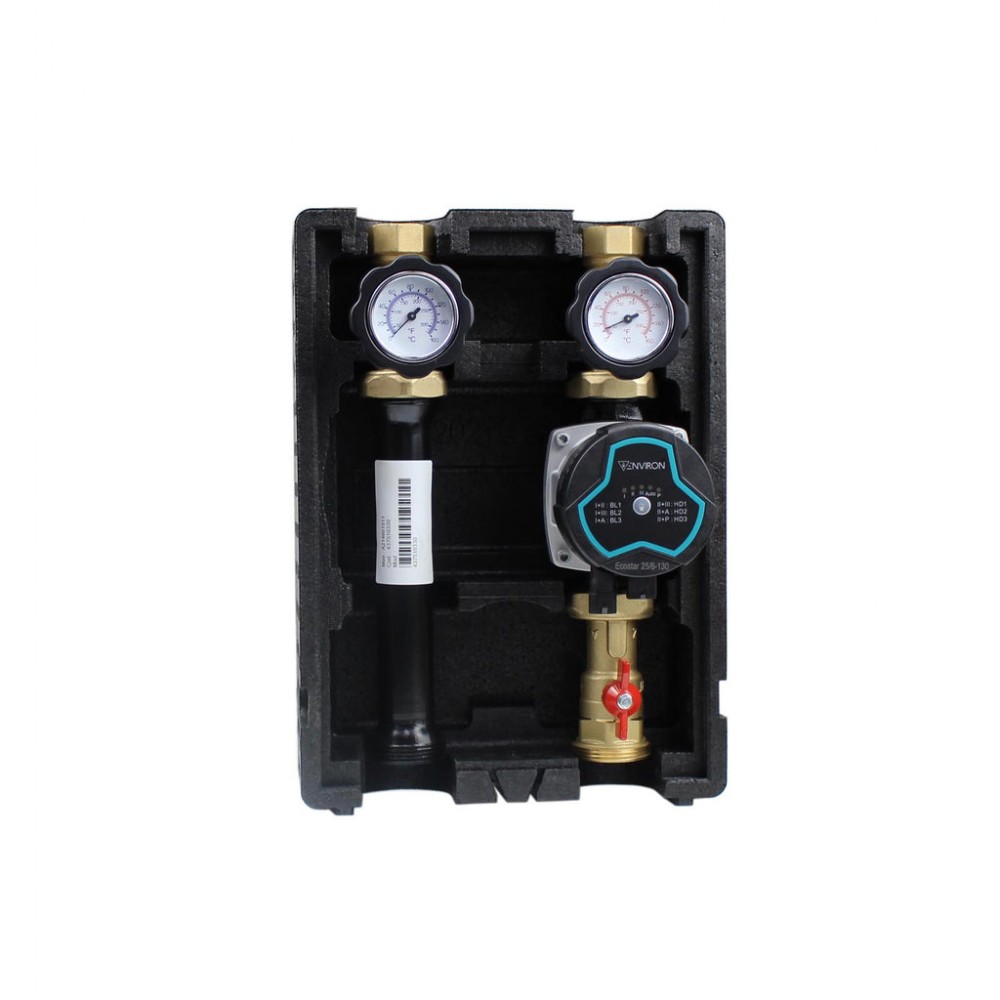

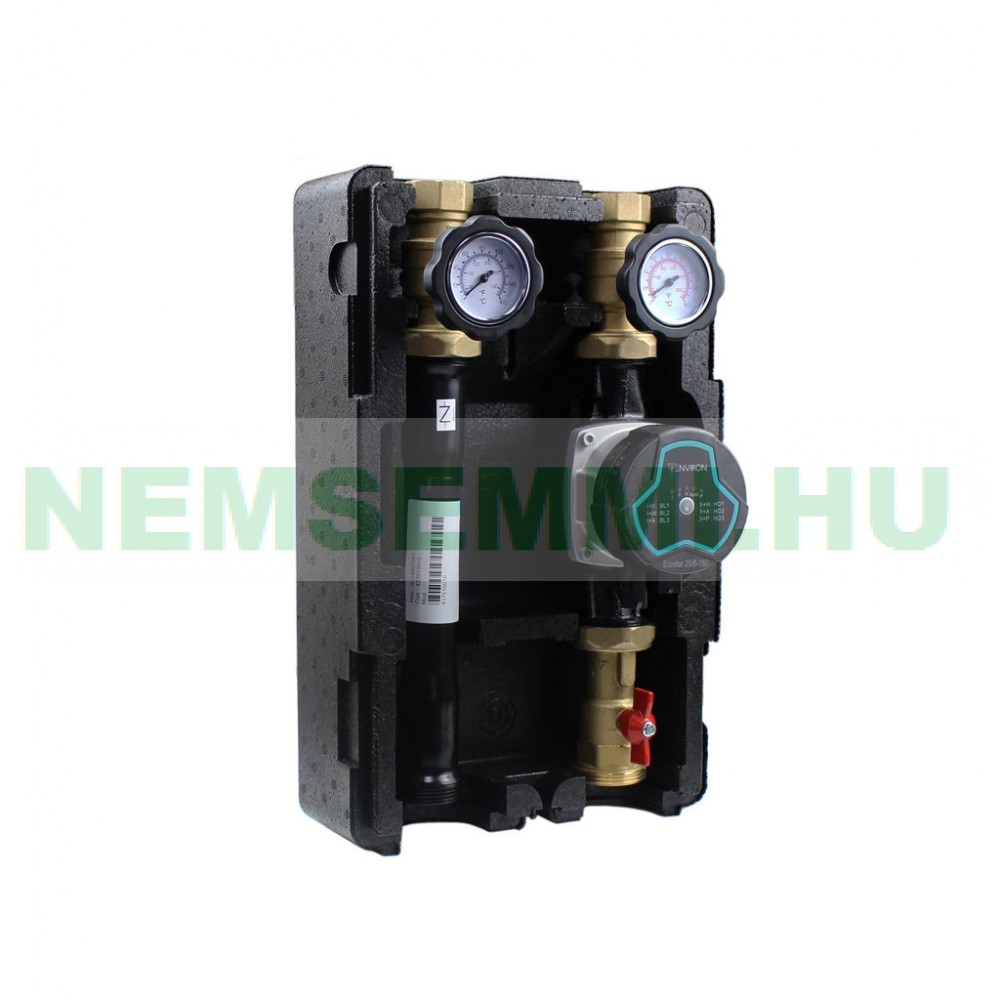

Solar collector pump station max 60 l/p 2-sided ENVIRON circulating pump group thermally insulated with 2 thermometers, shut-off fittings
