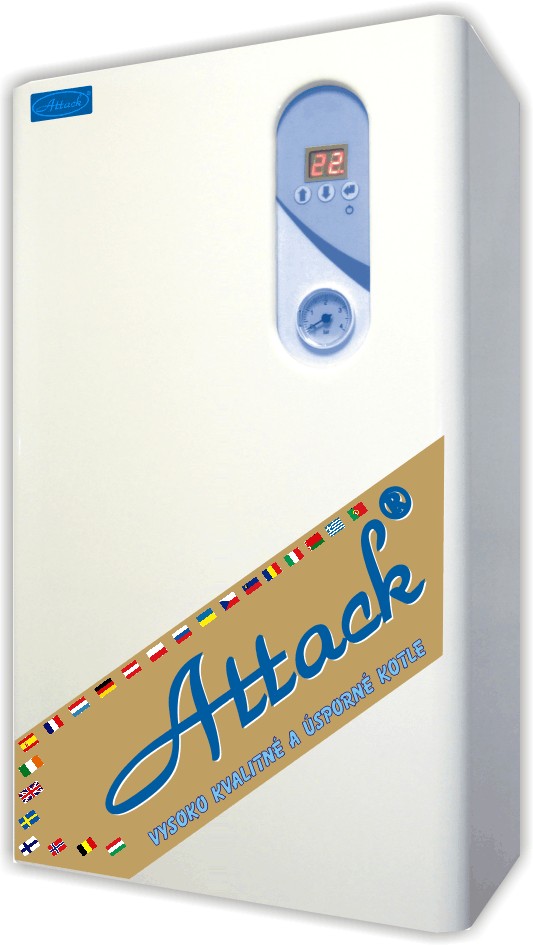

Electric boiler 7.5 KW ATTACK ELECTRIC EASY 8

Boiler

Rated heat output kW 7.5
Rated current A 3× 12 / 1 × 36
Protection level IP 40
Mains voltage V 3× 230/400 V + N + PE/50 Hz or 1× 250 V + N + PE/50 Hz
Rated current max. A 3×16 / 1×40
Electric circuit breaker A 3×16 / 1×40
Control fuse current rating A 0.315
Relay - electrical life - 250 000 cycles, 16 A, 250
Heating water inlet/outlet G ¾" external
Min. operating pressure of the heating system bar 0.4
Max. operating pressure of the heating system bar 3
The maximum temperature of the heating water is °C 80
A total volume of boiler water l 5.8 #000000;">Expansion tank Only included in the Excellent version, 8 liters

The weight of the boiler is kg 19

Dimensions (height / width / depth) mm 370 / 625 / 225

Designed for heating your circulation heating system and heating DHW. The heating water is heated in the boiler body using one, two or three 7.5 kW heaters. Each heater consists of three heating elements, each with a power of 2.5 kW.

The heating process is regulated by precise PID control, which ensures extremely economical operation, the boiler thus saves energy. The control of the boiler can also be coordinated with the room thermostat. Indirect storage that can be connected to the ATTACK electric boiler.

The excellent type boiler can also be controlled using a mobile phone, for which a GSM external module is required. The ATTACK ELECTRIC EASY boiler is recommended for continuous circulation heating systems, where the heat loss in the house is up to 7.5 kW (low-energy houses, apartments and smaller facilities).
In addition to classic heating systems, modern heating systems can also serve as backup heating for biomass or wood-burning boilers, heat pump and solar energy systems.

The advantages of the electric boiler
- Modern design
- small sizes
- Either 99% efficiency
- Convenient setting and control using the multifunctional LCD display
- Noiseless operation
- Continuous power control
- Economic operation
- Controlling the boiler with a mobile phone (Excellent design)
- Room thermostat can be connected
