Pump station 4-circuit 1600 l/h ECOMIX ENH001 pump station with Environ EcoStar 25/6 high efficiency pump

Four-circuit pump station

Max. flow rate: 1,600 l/h
Temperature: 110 °C
Max. pressure: 6 bar
Min. temperature: 10 °C
Ball valves: brass CW617N
Material insulation : EPP 38 g/l
Thermal conductivity: (λ 40 "C) 0.038 W/mK
Fire protection class: ISO 3795
System connections: 1"½ ET

Technical data Environ EcoStar 25/6 high efficiency pump:
Lift height: 6 m
Flow speed: max. 3.6 m³/h
Temperature range: between -20°C and +110°C
Energy consumption: 3W-43W
Operating pressure: max. 10 bar
Electrical connection: 230V/50HZ
Power voltage: 220~240V, 50/60Hz
Protection class: IP44
Insulation class: H
EMC standard: EN61000-6-1 and EN61000-6-3

Pump station

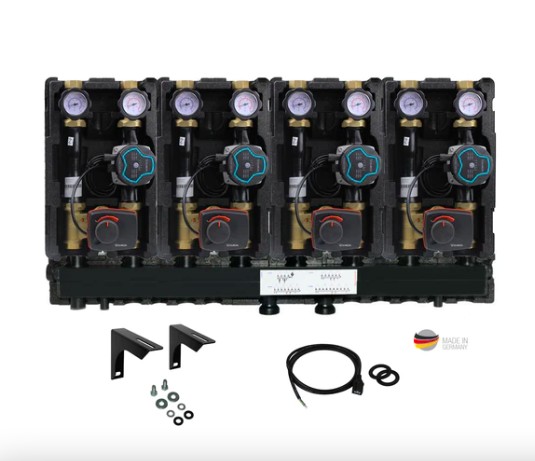

Four-circuit ECOMIX ENH001 pump station is a ready-to-install, professional pump group for heating circuits, such as floor heating, wall heating, radiators. With built-in brass three-way mixing valve and ESBE ARA661 electric servo motor. It is equipped with a high efficiency Environ EcoStar 25/6 pump. The direction of flow and return is easily reversed. In the upper part of the pump station there are shut-off valves (1" IT) with built-in thermometers (0-160°C). If the pump group is installed separately, a wall bracket can be screwed to the shut-off valves (not included). The maintenance or replacement of the circulation pump is very easy. without draining the system.
The thermal insulation made of EPP ensures an optimal climate inside the insulation, so it does not form heat build-up.
