12V Motorized valve 3-way zone valve mixing valve changeover valve DN32

Nettó ára: 55.78 €
Bruttó ára: 70.84 €

Szelepjáratok száma:

Kétjáratú

Háromjáratú

Menet mérete:

3/4"

1/2"

1 1/4"

1 1/2"

Csatlakozás típusa:

Belső menet

Feszültség:

12V

24V

230V

Működés típusa:

Kétirányú motoros vezérlés

	Kockázatmentes vásárlás
	180 napos elállás
	Magyar cég, magyarországi raktár!

Máshol olcsóbban látta?

Details
Info

Details

Zone valve, motorized ball valve

Motor 12 VAC
Medium: cold/warm water, 60% ethylene glycol
Material: brass
Power: 6W (only when opening and closing valves)
Duration: 5-15 seconds
Rated pressure: 1.6 MPa
Medium temperature: 2°C ~ 95°C
Maximum pressure difference: 1.0 MPa
Connection method: G Internal thread

More information:< /p>

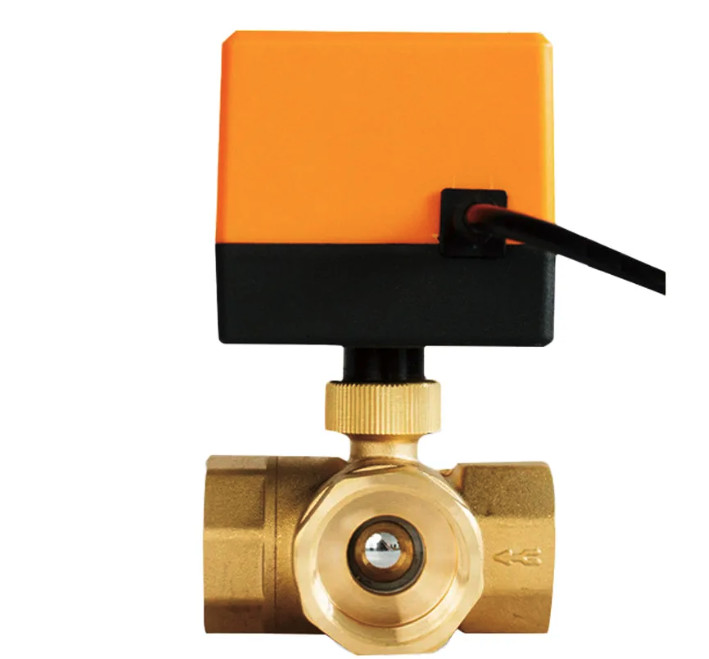

Three-way motorized ball valve

A motorized valve is a mechanical device that controls or shuts off the flow of liquids or gases in a system. Motorized valves are widely used in various industries and applications, from domestic applications to industrial processes.< /p>

The motor moves a ball valve, which lets thewater in one or the other direction depending on which of the 2 cables receives the voltage.
In the event of a power failure, it can also be adjusted with a key.
Consumes electricity only when moving, no consumption when closed or open.

Info

Vonalkód:

3202312210912

EAN-kód:

5202310171043

MPN-kód:

NS171043

Weight:

1 kg/pcs
