Motorized back-and-forth valve 3-way mixing valve changeover valve zone valve DN25 1" BB internal thread connection 230V Motorized back-and-forth switching

Nettó ára: 45.43 €
Bruttó ára: 57.69 €

Motorized back-and-forth valve 3-way mixing valve changeover valve zone valve DN25 1" BB internal thread connection 230V Motorized back-and-forth switching

Nettó ára: 45.43 €
Bruttó ára: 57.69 €

Szelepjáratok száma:

Kétjáratú

Háromjáratú

Menet mérete:

3/4"

1/2"

1 1/4"

1 1/2"

Csatlakozás típusa:

Külső menet

Belső menet

Feszültség:

12V

230V

24V

Működés típusa:

Kétirányú motoros vezérlés

Rugó visszatérítéses

	Kockázatmentes vásárlás
	180 napos elállás
	Magyar cég, magyarországi raktár!

Máshol olcsóbban látta?

Details
Info

Details

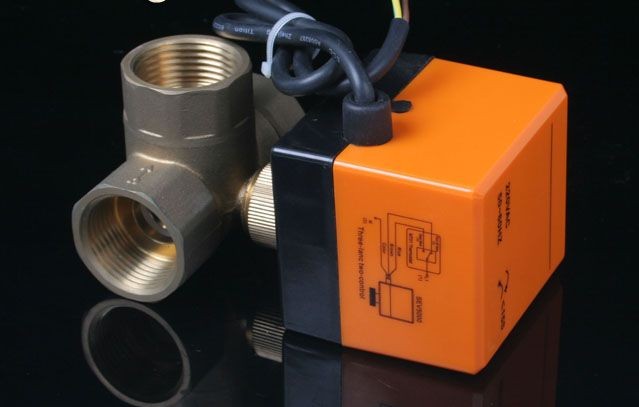

Motorized zone valve

Three-way motorized ball valve
Motor 230 V 50 Hz
1" internal threaded connectors
Maximum flow: 60 m3/h
Switching speed: 15 s
Consumption switching below: 6W
The equipment does not consume when it is at rest.

Connection aid:
Green-yellow / Yellow cable: N, i.e. zero point connection
Blue: L i.e. connection of one phase point. This is the switched phase. In one direction.
Black / Brown: L i.e. connection of another phase point. This is the switched phase. In the other direction.

During the connection, if one branch receives the fascia and the other, never connect both at the same time!

Further information:< /p>

Three-way motorized ball valve

It switches back and forth with a motor.
The motor moves a ball valve, which it lets thewater in one or the other direction depending on which of the 2 cables receives the voltage.
It can also be adjusted with a key in the event of a power failure.
Consumes electricity only when moving, no consumption when closed or open!

Info

Vonalkód:

00077712

EAN-kód:

6445563434005

MPN-kód:

NS000442

Weight:

1 kg/pcs
