12V motorized valve 3-way zone valve mixing valve changeover valve DN25 1" BB connectors low voltage motorized back-and-forth switching

• Details
• Info

Details

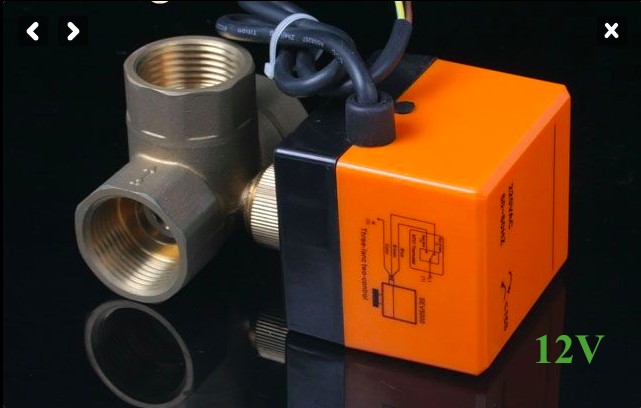

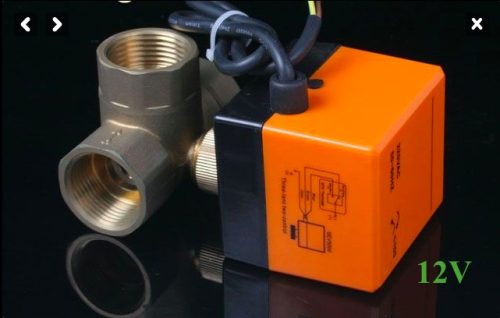

Zone valve, motorized ball valve 3-way

Motor 12 V
1" internal threaded connectors

Connection guide
Green-yellow cable: N, i.e. zero point connection
Blue: L i.e. positive point connection
Black: L i.e. positive point connection
Depending on the positive connection, it turns in one or the other direction. The equipment does not consume in end position.

Further information:

Three-way motorized ball valve

The motor moves a ball valve, which lets thewater in one or the other direction depending on which of the 2 cables receives the voltage.
In the event of a power failure, it can also be adjusted with a key.
Consumes electricity only when moving, no consumption when closed or open.

Info

Vonalkód:

00077668

EAN-kód:

6445563434004

MPN-kód:

NS000436

Weight:

1 kg/pcs
