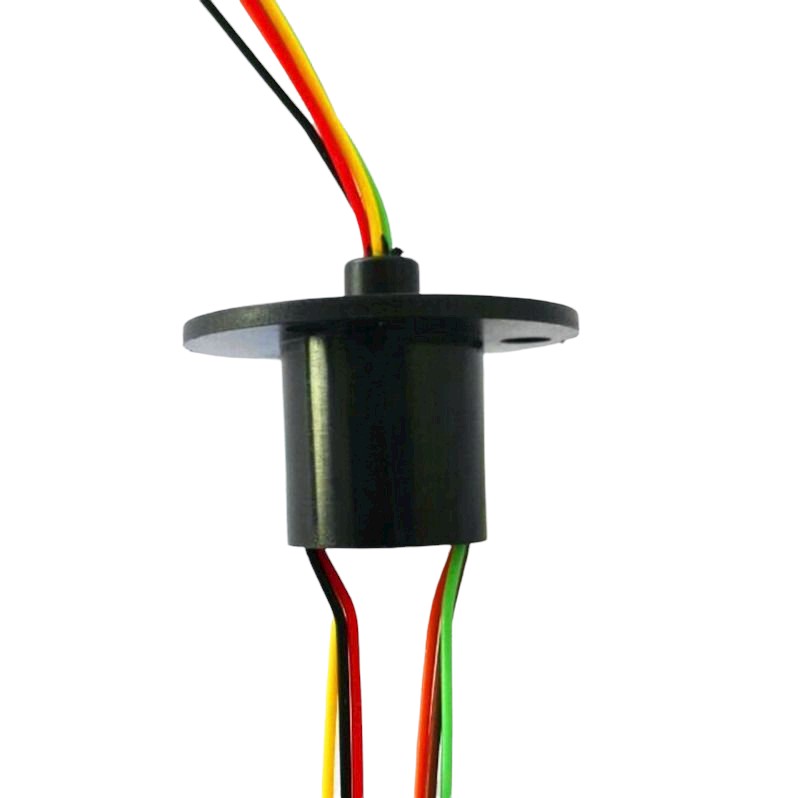

Slip ring rotary contact 2A 6-wire, large flange against cable twisting, e.g. camera, robot, wind wheel, wind turbine, with gold-plated contacts.

• Details
• Info

Details

Slip ring

Anti-twist
Dust and moisture resistant design
< span style="color: #000000;">Suitable for direct current or alternating current structures
Diameter: 40 mm
Length: 30 mm
Center cylinder diameter: 22 mm
Hole pitch circle: 30 mm
Maximum current: 2A
Maximum voltage: 240V
Operating speed: 0-300 revolutions/ min
Operating temperature: -40℃ - +80℃
Cable length: 100 mm
Protection: IP51

More information:

Sliding contact, rotary contact

Possibility of use:

• robot


• camera


• medical device


• wind generator

Info

Vonalkód:

00024860

MPN-kód:

NS000427

Weight:

13 g/pcs
