Flat collector with tile pattern - blends into the roof! Copper tube titanium oxide selective absorber 2 m2 top product

Plane collector

Solar collector size WxD: 1008x2007 mm
Collector thickness 100 mm< br />Total collector surface: 2.02 m2
Aperture surface: 1.8 m2
Glass thickness: 3.2 mm
Glass thickness: microprism low-metal, heat-treated safety glass, with a foil imitating a pot
Pubbing: harp system copper, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connection pipes
Liquid capacity: 1.6 liters
Maximum pressure: 10 bar
Maximum operating pressure: 8 bar
Weight: 39.5 kg
Absorber material: selective titanium oxide
Absorbing capacity: 95 %
Emissive factor: 4.7%
Insulation: 45 mm
Insulation material: glass wool
Insulation thickness: 50 mm
Idle temperature: 197 °C
Recommended volume flow: 100 liters/hour

Selectable pattern:

- tiles that can be placed next to each other
- Tuscan tiles

Warranty: 9 years

Solar collector packaging size:
205X110X12 cm 43 kg

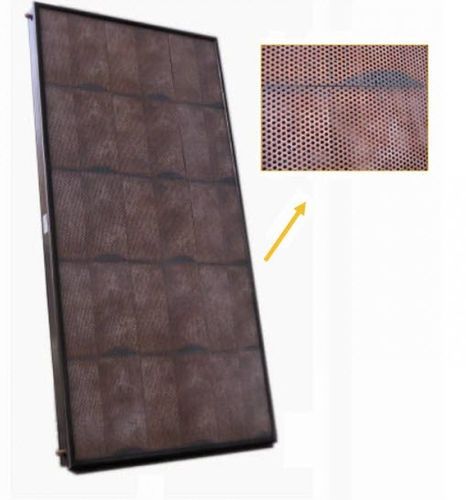

Tile pattern solar collector

Premium product with Solar Keymark certification, 9-year warranty!
The heat-treated low-metal safety microprism glass is given a special, tile-patterned coating, with which the beauty and pattern of the roof can be preserved.
This is particularly important where urban planning requirements do not allow the installation of visible collectors
The color of the frame is RAL 8017 brown
Plane collector, copper collecting tube and copper absorber plate.
Modern, easily emptying harp layout.
With aluminum housing, extra thick insulation for solar energy utilization.
With 22 mm connectors, solar Keymark and CE certificate
Easy installation and maintenance.

Note: Due to the foil, the performance of the solar collector is slightly lower than that of the chic collectors without foil.
