Flat collector with tile pattern - blends into the roof! Copper tube titanium oxide selective absorber 2.5 m2 top product 10 year warranty

Flat collector with Mediterranean design

Solar collector size 1987x1270 mm
Collector thickness 100 mm
Gross collector surface: 2.523 m²
Net collector surface: 2.400 m²
Optical efficiency: 0.797 η0
Glass thickness: 3.2 mm
Glass thickness: microprism low-metal, heat-treated safety glass, with tile imitating foil
Pubbing: harp system copper, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pieces of 22 mm copper connection pipes
Liquid capacity: 2 liters
Maximum pressure: 10 bar
Maximum operating pressure: 8 bar
Weight: 43 kg
Absorber material: selective titanium -oxide
Absorption capacity: 95 %
Emissivity factor: 4.7%
Insulation: 45 mm
Insulation material : glass wool
Insulation thickness: 50 mm
Idle temperature: 197 °C
Recommended volume flow: 130 liters/hour
Warranty: 10 years
Solar collector packaging size:
205X140X12 cm 43kg

Calculating solar collector performance

The performance of solar collectors is usually given according to the following relationship:

η = η0 – a1 ΔT/ G – a2 (ΔT)²/G

η: indicates the efficiency of the solar collector

η0: optical efficiency of the solar collector

a1: the first-order heat loss coefficient

a2: the quadratic heat loss coefficient

ΔT: temperature difference ΔT = (tcollector – air)

G: total solar radiation reaching the surface of the solar collector

Solar collector effect curve

It is clear from the above that the performance of solar collectors cannot be described entirely by a single number. The best way to do this is to examine the efficiency curve for solar collectors.

Solar collector efficiency curve calculation

The efficiency formula outlined above is the equation of a quadratic curve, the mathematical format of which is: y = b0 + b1 *x + b2 *x²

b0 = η0

b1= -a1

b2 = -a2 *G

x = ΔT/G

The efficiency curve is usually plotted as a function of the independent variable x = ΔT/ G {°Cm²/W}, according to the formula below:

η = η0 – a1*x – a2*G*x2

Based on the above calculations, it can be seen that it is not easy to talk about clear performance in the case of solar collectors, since momentary environmental effects can affect it just as much as the type of solar collectors.

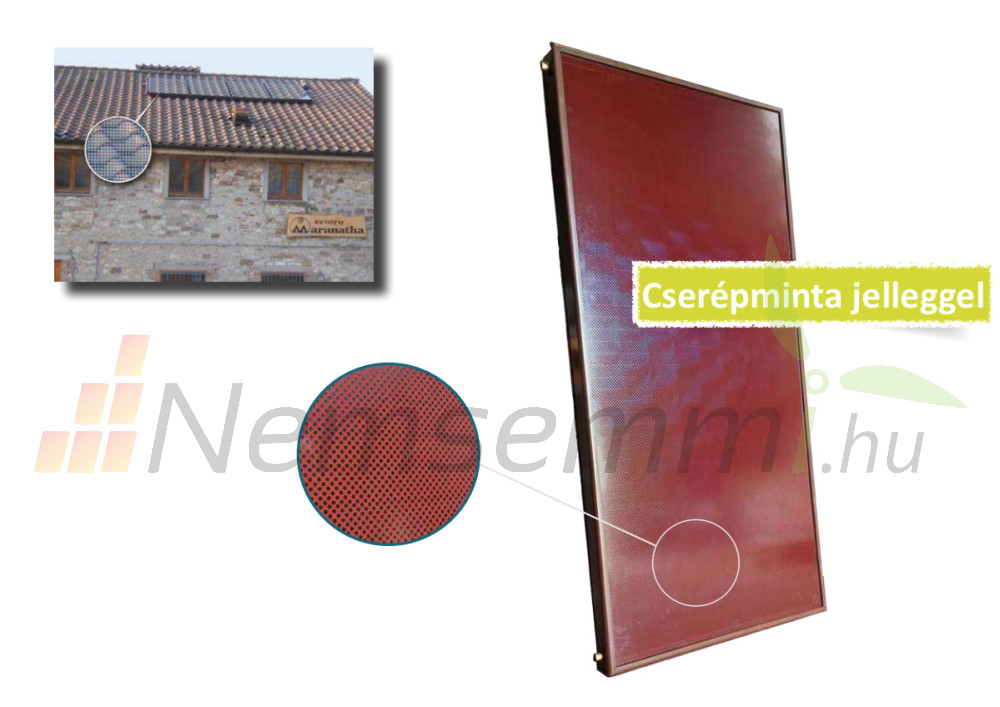

Solar collector with tile pattern

2.5 m2 premium product with Solar Keymark certification, 10-year warranty!

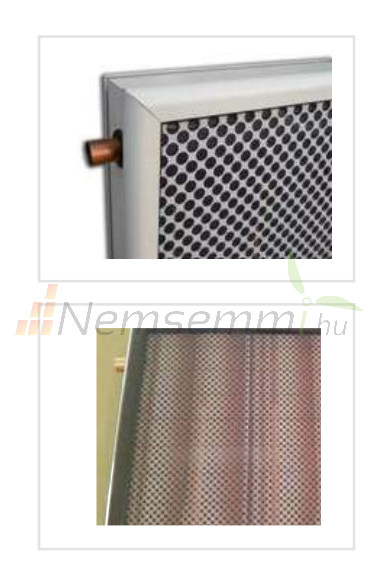

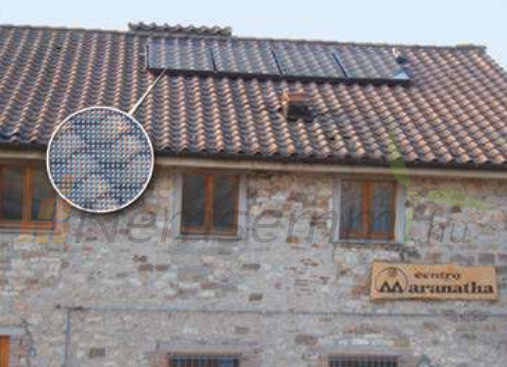

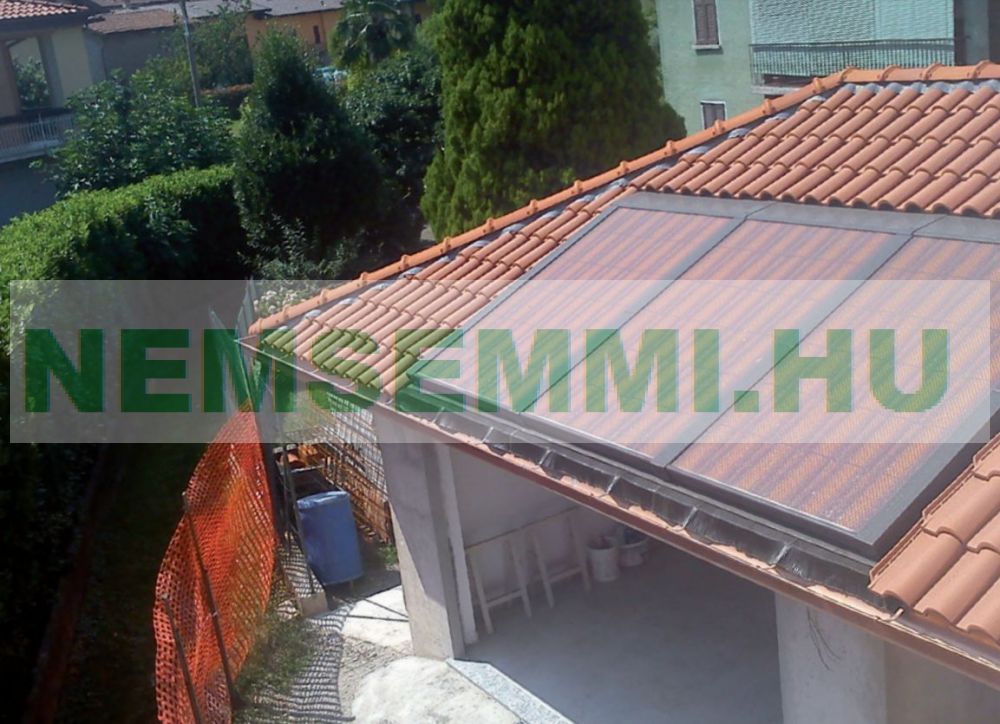

The heat-treated safety microprism glass with a low metal content is given a special, tile-patterned coating, with which the beauty and pattern of the roof can be preserved. This is especially important where urban planning requirements do not allow the installation of visible collectors
The color of the frame is RAL 8017 brown
Plane collector, copper collector tube and copper absorber sheet.
Modern, easy-to-empty harp design.
Aluminum housing with extra thick insulation for solar energy utilization.
With 22 mm connectors, solar Keymark and CE certificate
Easy installation and maintenance.

Note: Because of the foil, the performance of the solar collector is slightly lower than that of chic collectors without foil.
