1 buffer tank with heat exchanger

Storage capacity: 478 liters
Diameter with insulation: 75 cm
< /span>Height with insulation: 162 cm
Tilt height (R2): 179 cm
Reservoir working pressure: 3 bar/99°C
Working pressure of heat exchanger: 12 bar/110°C
Surface of heat exchanger: 1.9 m2
Weight: 114 kg
Insulation: non-removable hard polyurethane foam
Energy efficiency class: C

DATA SHEET FOR DOWNLOAD
See the drawing for connectors.

A: hot water delivery boiler/heating backup 1"1/2
B: connection for measuring instruments 1/2"
C: boiler/heating return 1"1/2
I: electric heating insert connector (6/4")
G: heat exchanger inlet 1"
H: heat exchanger outlet 1"

Find the corresponding heating pad and sensors in our online store.

Warranty: 5 years

More information:

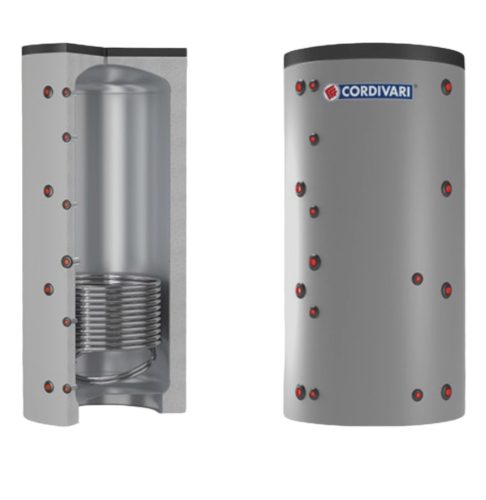

Buffer tank with 1 heat exchanger

Hot water storage buffer tank suitable boiler,heat pump, solar collector or pellet boilerto store hot water produced by
In this buffer tank, you store the water thatalso circulates in your heating system .
The water in the closed circuit is heated directlywith the boiler, open-air fireplace or with a heat pump.
It can also be heated with an electric heating pad.
In a corner design that can be placed within 100°with positioned connectors.
The steel container it is not treated on the inside (it doesn't need to be!),on the outside it has a single layer of primer paint.
The internal heat exchanger can also be connected to a fireplace, fireplace, solar collector or heat pump.

If you also want to prepare domestic hot water (bath water), look for buffer tanks with heat exchangers.
If there is domestic hot water (bath water) in the tank you would like to store, choose a hot water indirect storage, boiler!

Buffer tank - Cordivari 1VB 500 - 1 heat exchanger 500 liters - corner buffer tank
