Standing indirect storage with external heat exchanger

Storage volume: 1978 liters
Weight: 279 kg
Diameter with insulation: 1360 mm
Height with insulation: 2492 mm
Tilt height (R2): 2850 mm
Maximum pressure of reservoir: 10 bar/90°C
Maximum pressure of heat exchanger: 12 bar/110°C
Heat exchanger surface: 4 m2
Heat exchanger volume: 294 liters
Insulation: removable soft synthetic wool
Energy efficiency class: C
Further parameters in the pictures and on the downloadable data sheet.

AVAILABLE FOR DOWNLOAD DATA SHEET

More information:

1 DHW with external heat exchanger

Production time 2-3 months from order.

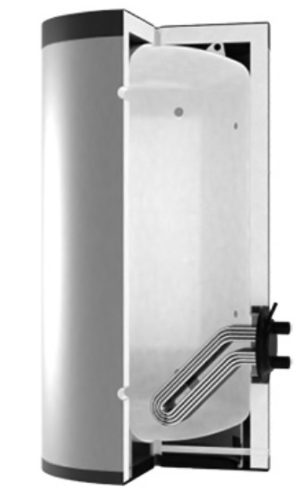

Standing DHW tank, with POLYWARM® inner coating,with a heat exchanger that can be inserted or removed afterwards, soft synthetic wool thermal insulation is removable and fireproof,which is made of 100% recycled materials.
The complex corrosion protection is provided by the titanium-enamel interior and theoptionally insert titanium anode < /span>is insured.
The heat exchanger has a special design of 316L materialstainless steel, which can optionally be inserted into the DHW tank.
The silicone insulation in the heat exchanger opening is suitable for drinking water. (98/83/CE)
Available accessory: electric heating pad.

A 30% advance payment is required to finalize the order.

2000 liter indirect storage with external heat exchanger Cordivari Extra 1 WX 1 DHW tank with heat exchanger
