Standing indirect container

Storage volume: 789L
Weight: 232 kg
Diameter with insulation: 95 cm
Height with insulation: 216.3 cm
Tilt height (R2): 236.5 cm
Maximum pressure of reservoir: 10 bar/90°C
Maximum pressure of heat exchanger: 12 bar/110°C
Upper heat exchanger surface: 1.6 m2
Lower heat exchanger surface: 2.7 m2
Insulation: 10 cm polyester (material similar to wool), removable!
Energy efficiency class: C
Additional parameters in the pictures and on the downloadable data sheet.

DOWNLOAD DATA SHEET

More information:

2 DHW tanks with heat exchangers

The indirect storage is used to produce domestic hot water,
it is heated through the built-in heat exchanger.
One of the heat exchangers of the two heat exchanger storage can be heated, e.g. with a boiler,
the other e.g. with a solar collector, the advantage is that it can be heated with two separate
heat generators, which can also be pellet boilers, hydro
also a fireplace.

Standing design, with POLYWARM® coating, two heat exchangers, removable
thermal insulation.
The complex corrosion protection is titanium-enamel internal and replaceable
anode is provided.
Optional accessory: electric heating pad.

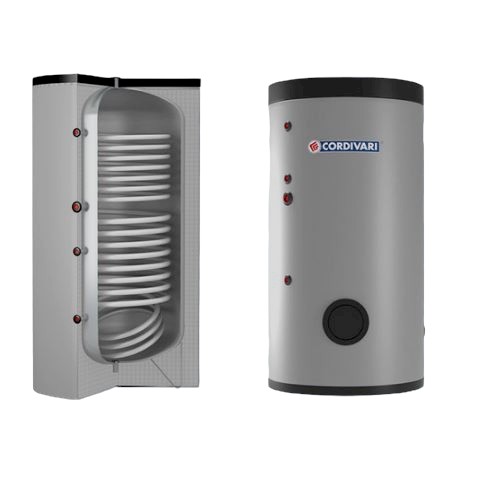

Hot water storage - Cordivari Bolly 2ST WC800 2-heat exchanger standing 800L indirect boiler
