Standing indirect container

Storage capacity: 189L
Weight: 65 kg
Diameter with insulation: 55 cm
Height with insulation: 143.4 cm
Tilt height (R2): 160 cm
Maximum pressure of reservoir: 10 bar/90°C
Maximum pressure of heat exchanger: 12 bar/110°C
Upper heat exchanger surface: 0.5 m²Lower heat exchanger surface: 0.8 m²Insulation: non-removable hard polyurethane foam
Energy efficiency class: B
Further parameters on the pictures and downloadable data sheet.

DOWNLOADABLE DATA SHEET

More information:

2 DHW tanks with heat exchangers

The indirect storage is used to produce domestic hot water,
it is heated through the built-in heat exchanger.
One of the heat exchangers of the two heat exchanger storage can be heated, e.g. with a boiler, the other e.g. with a solar collector, the advantage is that it can be heated with two separate heat generators, which can also be a pellet boiler or a water-filled fireplace. with heat exchanger, non-removable hard polyurethane thermal insulation.
Complex corrosion protection is provided by titanium-enamel inner and replaceable anode.
Optional accessory: electric heating pad.

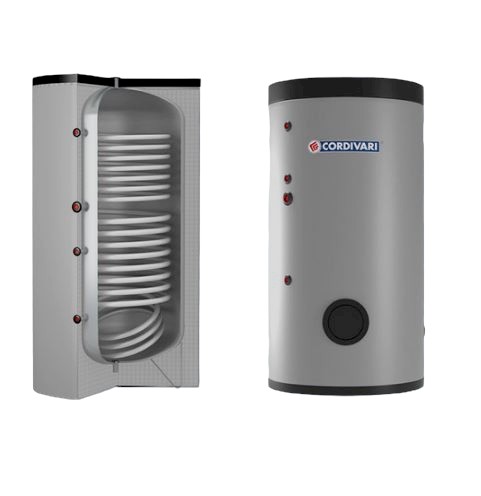

Hot water storage - Cordivari Bolly 2ST FB200 2 heat exchanger standing 200L indirect boiler

Standing indirect container

2 DHW tanks with heat exchangers
